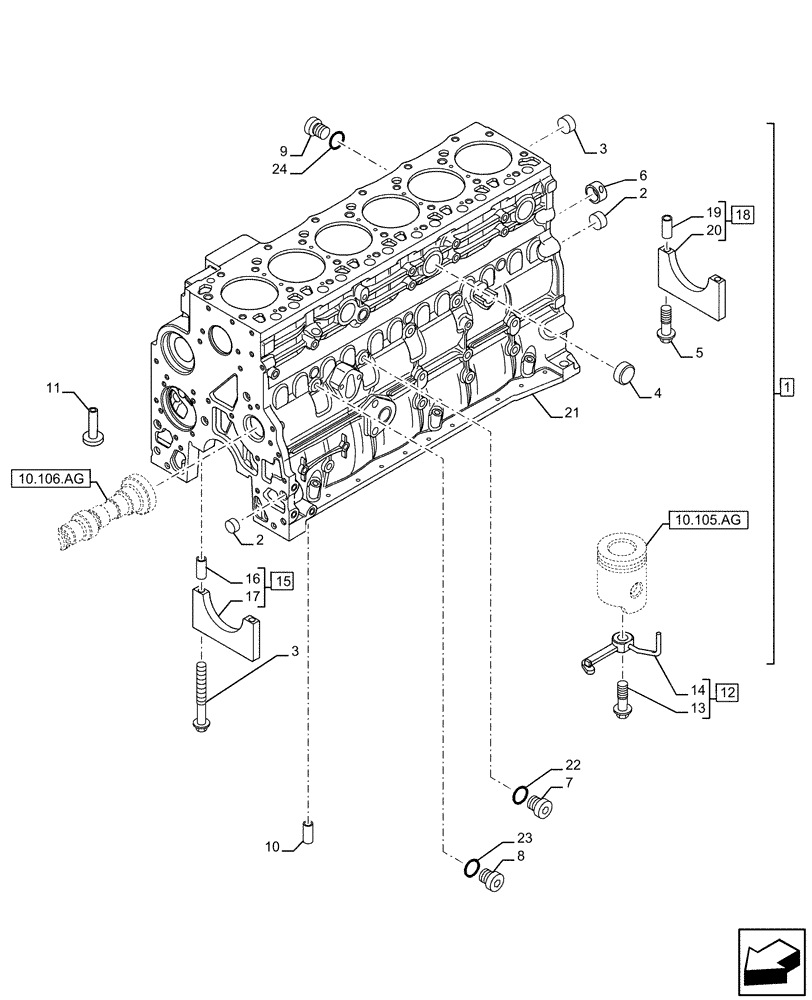

Запчасти Case F4HFE6131 B003 (10.001.AB[01]) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE

1

47651232

CYLINDER BLOCK

ASSY, Incl 2, 3, 4, 5, 6, 15, 18, 21

1шт.

2

4895039

EXPANSION PLUG,M17.73

3шт.

3

4895038

EXPANSION PLUG,M58.06

6шт.

4

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

5

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

14шт.

6

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

7

4895605

HEX SOCKET PLUG,M14 x 1.5

2шт.

8

4899009

PLUG,M10 x1

2шт.

9

4895392

HEX SOCKET PLUG,M18 x 1.5

2шт.

10

4895049

DOWEL,M16.05 x 10

2шт.

11

4899803

TAPPET

12шт.

12

2852202

NOZZLE, PISTON COOLI

Lube Oil Jet Nozzle

6шт.

13

4894218

SCREW,Special, M8 x 20

1шт.

14

504047260

LUBE OIL NOZZLE

Lube Oil Jet Nozzle

1шт.

15

NSS

NOT SOLD SEPARAT

ASSY, Incl 16, 17

6шт.

16

4899026

DOWEL,M18 x 10

2шт.

17

NSS

NOT SOLD SEPARAT

Cylinder Block Component, Incl in 15

1шт.

18

NSS

NOT SOLD SEPARAT

ASSY, Incl 19, 20

1шт.

19

4899026

DOWEL,M18 x 10

2шт.

20

NSS

NOT SOLD SEPARAT

Cylinder Block Component, Incl in 18

1шт.

21

NSS

NOT SOLD SEPARAT

Cylinder Block, Incl in 1

1шт.

22

4899115

O-RING,2.2mm Thk x 11.3mm ID

2шт.

23

4899072

O-RING,1.6mm Thk x 8.1mm ID

2шт.

24

4895393

O-RING,2.2mm Thk x 15.3mm ID

2шт.
