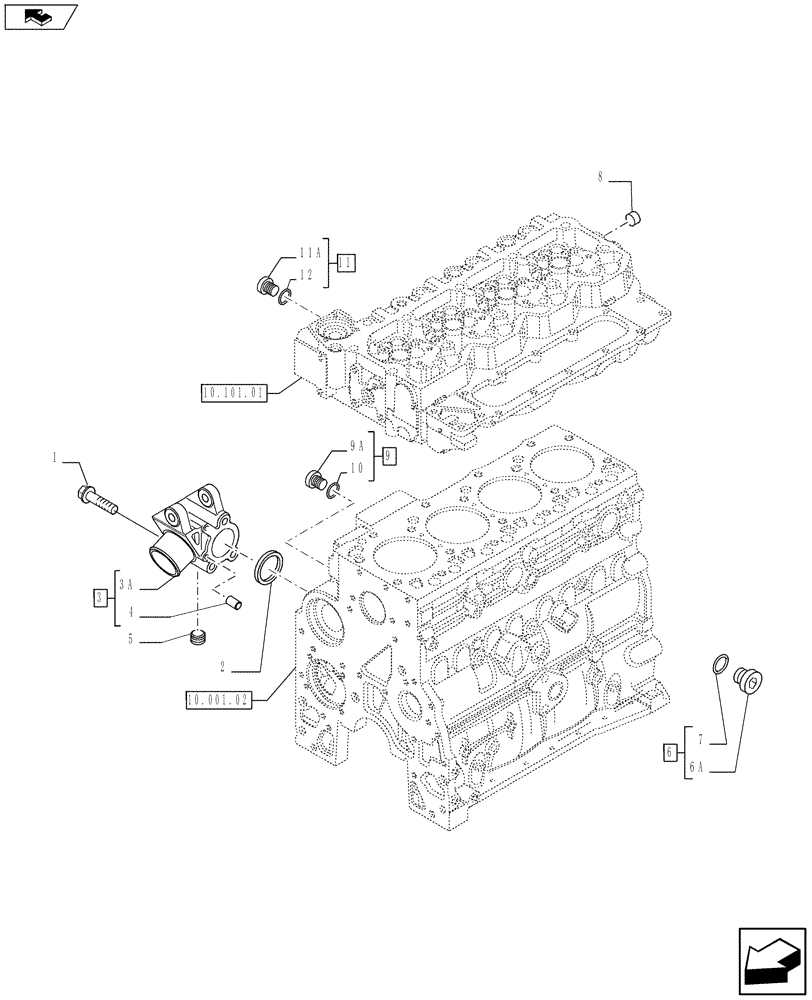

Запчасти Case F4HE0484G J102 (10.402.01[01]) - PIPING - ENGINE COOLING SYSTEM (2856257-2855824-2855775) (10) - ENGINE

1

4899109

SCREW,Hex, M10 x 1.5 x 80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2855776

SUPPORT

ASSY

1шт.

3a

NSS

NOT SOLD SEPARAT

1шт.

4

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

2шт.

5

2852511

PLUG,R3/8" - 18 NPTF, M8, 12.7mm L

1шт.

6

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY

1шт.

6a

NSS

NOT SOLD SEPARAT

1шт.

7

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

8

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

9

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY

1шт.

9a

NSS

NOT SOLD SEPARAT

1шт.

10

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

11

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY

1шт.

11a

NSS

NOT SOLD SEPARAT

1шт.

12

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.
