(10.304.01[02]) - OIL PUMP - ENGINE (2853413)

Запчасти Case F4HE0484G J102 (10.304.01[02]) - OIL PUMP - ENGINE (2853413) (10) - ENGINE

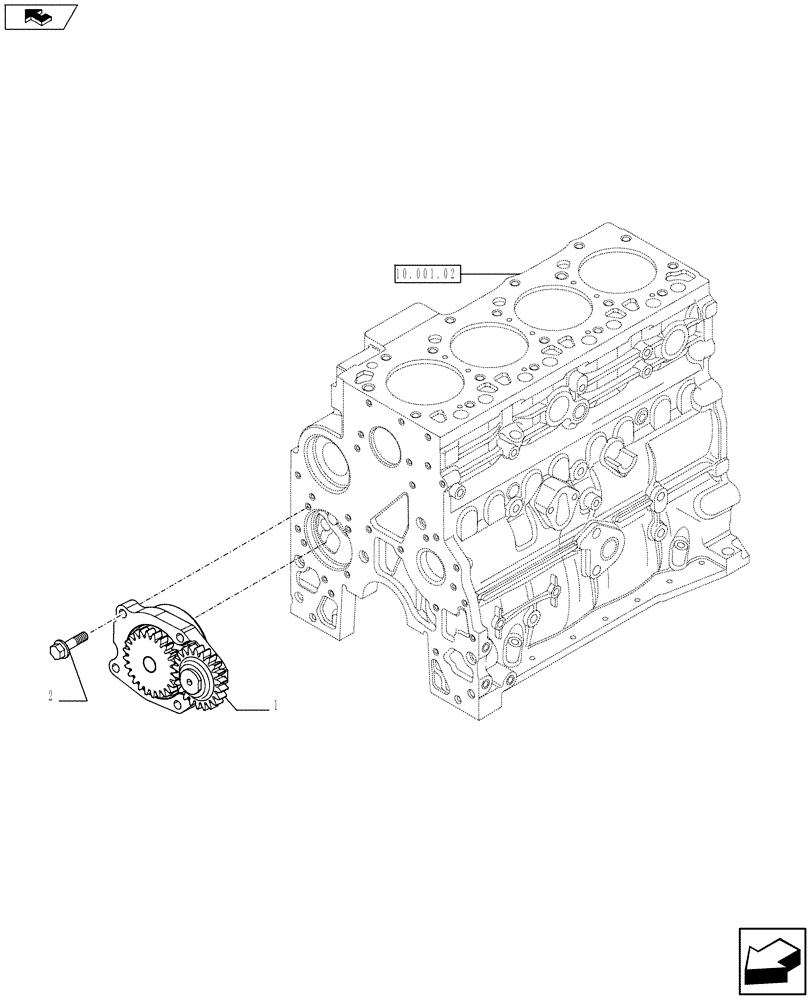

Схема запчастей Case F4HE0484G J102 - (10.304.01[02]) - OIL PUMP - ENGINE (2853413) (10) - ENGINE
10.001.02
2
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4897480

ENGINE OIL PUMP

IN ALTERNATIVE

1шт.

1

4897480R

REMAN-ENG OIL PUMP

F4HE0484G*J102

1шт.

1

4897480C

CORE-ENGINE OIL PUMP

RETURN NUMBER

1шт.

1

2853414

ENGINE OIL PUMP

IN ALTERNATIVE

1шт.

1

4897480R

REMAN-ENG OIL PUMP

F4HE0484G*J102, REMAN FOR NEW P/N 2853414

1шт.

1

4897480C

CORE-ENGINE OIL PUMP

RETURN NUMBER

1шт.

2

4899090

SCREW,Hex Flg, M8 x 1.25 x 30

4шт.
