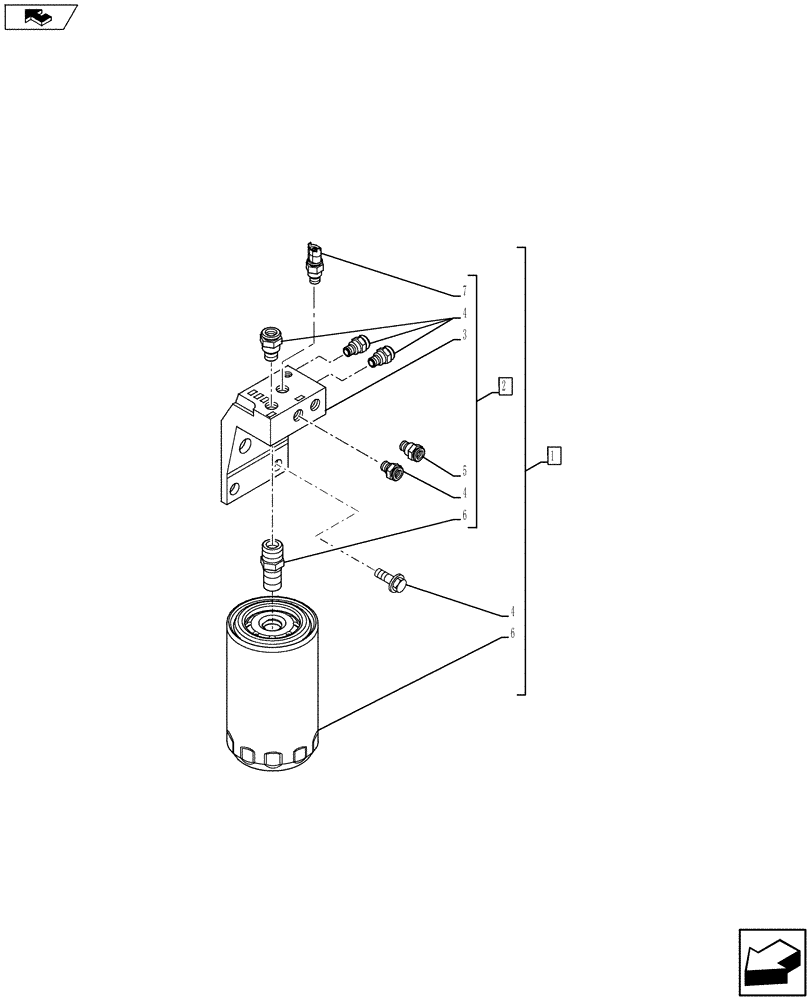

Запчасти Case F4HE0484G J100 (10.206.01) - FUEL FILTER (2855791) (10) - ENGINE

1

47378596

FUEL FILTER

Assy, Contains Ref. 2, 8, 9

1шт.

2

2855792

FILTER HEAD

Assy, Contains Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl. in 1

1шт.

4

2854563

FITTING

4шт.

5

2854564

FITTING,M12 x 1.5 - 12 H9

1шт.

6

4898877

FITTING,M20 x 1.5 - 6h M16 x 1.5 - 6h

1шт.

7

4897224

SENSOR

Temperature

1шт.

8

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

1шт.

9

2854566

SCREW,Hex, M12 x 1.75 x 30mm

M12X30

2шт.
