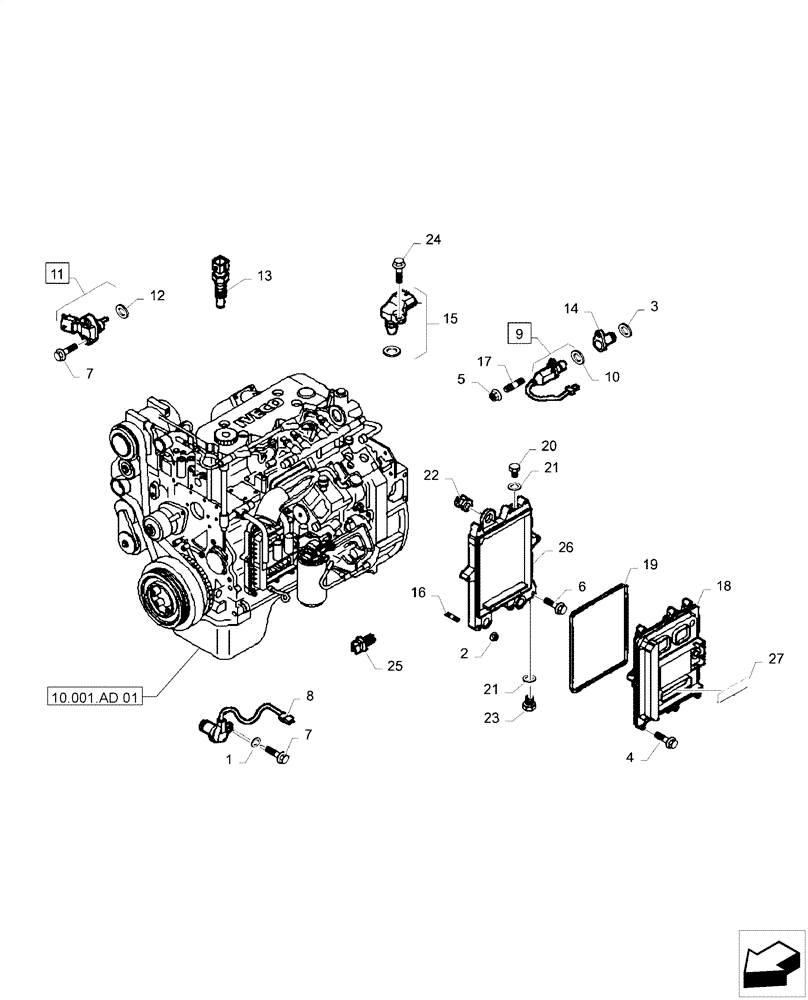

Запчасти Case F4HE0484D B101 (55.015.AA) - ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

4899124

WASHER

1шт.

2

4899057

FLANGE NUT,M6

1шт.

3

17278781

O-RING

1шт.

4

2854083

BOLT,Flng, M6 x 1 x 30mm

7шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

6

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

3шт.

7

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

8

4890189

SENSOR

Front Cover

1шт.

9

4890190

SENSOR

Incl 10, Rear Cover

1шт.

10

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

1шт.

11

504358206

Incl 12, Oil Temperature Pressure

SWITCH,Pressure

1шт.

12

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

13

4897224

SENSOR

Temperature

1шт.

14

84370070

HOUSING

1шт.

15

504372225

SENSOR,Temperature / Pressure

Pressure / Air Temperature

1шт.

16

2854593

STUD

1шт.

17

84598950

SCREW

1шт.

18

2854594

ECU

1шт.

19

504184521

GASKET

1шт.

20

4896542

HYD CONNECTOR,M12 x 1.5 ORB x 6 ORFS

1шт.

21

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

22

2855150

INSULATOR BLOCK

6шт.

23

4890964

FITTING,M12 x 1.5

1шт.

24

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

1шт.

25

504063553

CLAMP

2шт.

26

2854596

BRACKET

1шт.

27

504043102

PLUG

1шт.
