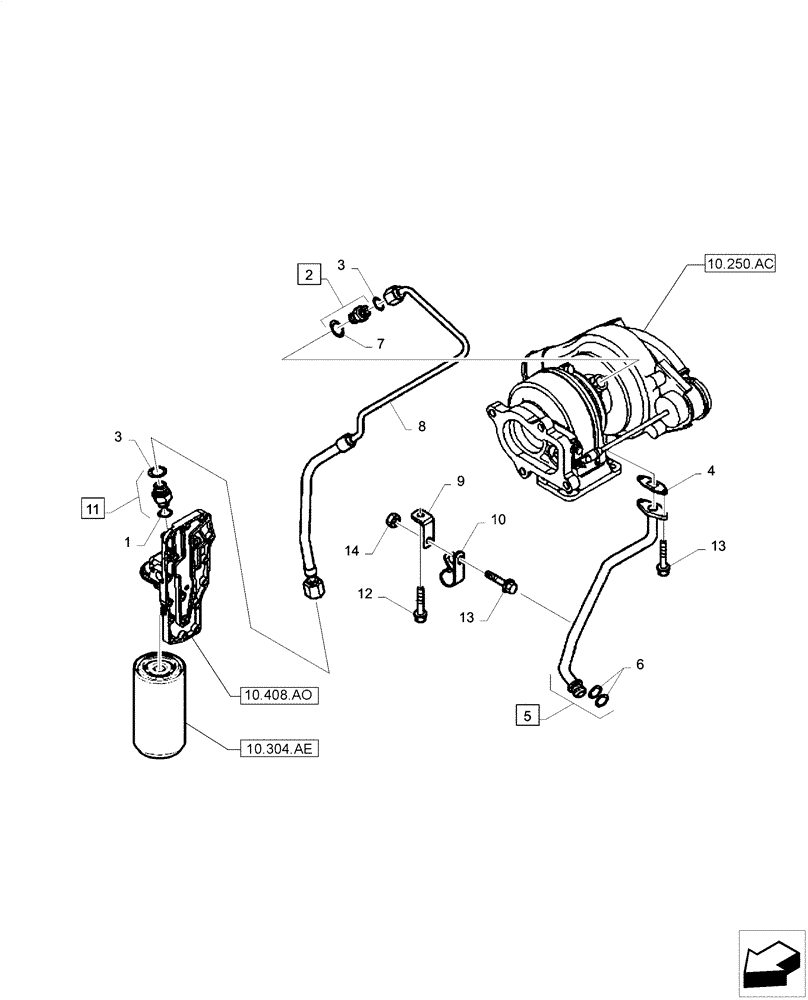

Запчасти Case F4HE0484D B101 (10.250.AD) - OIL LINE (10) - ENGINE

1

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

2

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

Incl 7

1шт.

3

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

2шт.

4

4899467

GASKET

1шт.

5

2859593

TUBE

Incl 6 - FOR 101 KW ENGINES

1шт.

6

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

7

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.

8

2852195

HYDRAULIC HOSE,6.4mm ID x 461mm L

1шт.

9

2830887

BRACKET

1шт.

10

4899519

CLAMP,M16, M6 Bolt

1шт.

11

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

Incl 1, 3

1шт.

12

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

M8 x 1.25

1шт.

13

16585724

BOLT,M6 x 16mm, Cl 8.8

M6 x 1

3шт.

14

2852197

FLANGE NUT,M6 x 1

1шт.
