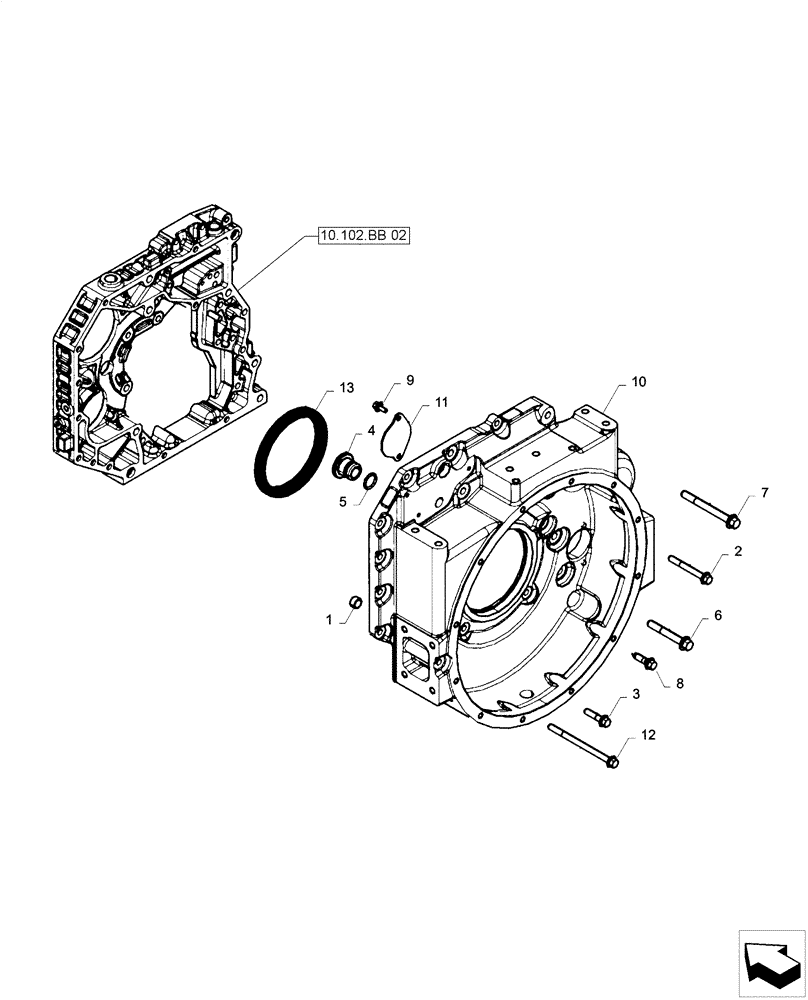

Запчасти Case F4HE0484D B101 (10.102.BE) - FLYWHEEL & HOUSING (10) - ENGINE

1

4899026

DOWEL,M18 x 10

2шт.

2

4899109

SCREW,Hex, M10 x 1.5 x 80

3шт.

3

4892915

FLANGE BOLT,Hex, M10 x 1.5 x 40mm

7шт.

4

4895378

BUTTON PLUG,M29.2

2шт.

5

17288480

O-RING,21.81mm ID x 3.53mm

2шт.

6

4899076

SCREW,Hex Flg, M12 x 1.75 x 80

5шт.

7

4897499

SCREW,Hex, M12 x 1.75 x 110mm

2шт.

8

2852865

FLANGE BOLT,Hex, Shldr, Lkg, M10 x 33mm

2шт.

9

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

10

2856957

HOUSING

1шт.

11

4895155

COVER

Lower

1шт.

12

4899143

SCREW,Hex Flg, M10 x 1.5 x 140

1шт.

13

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.
