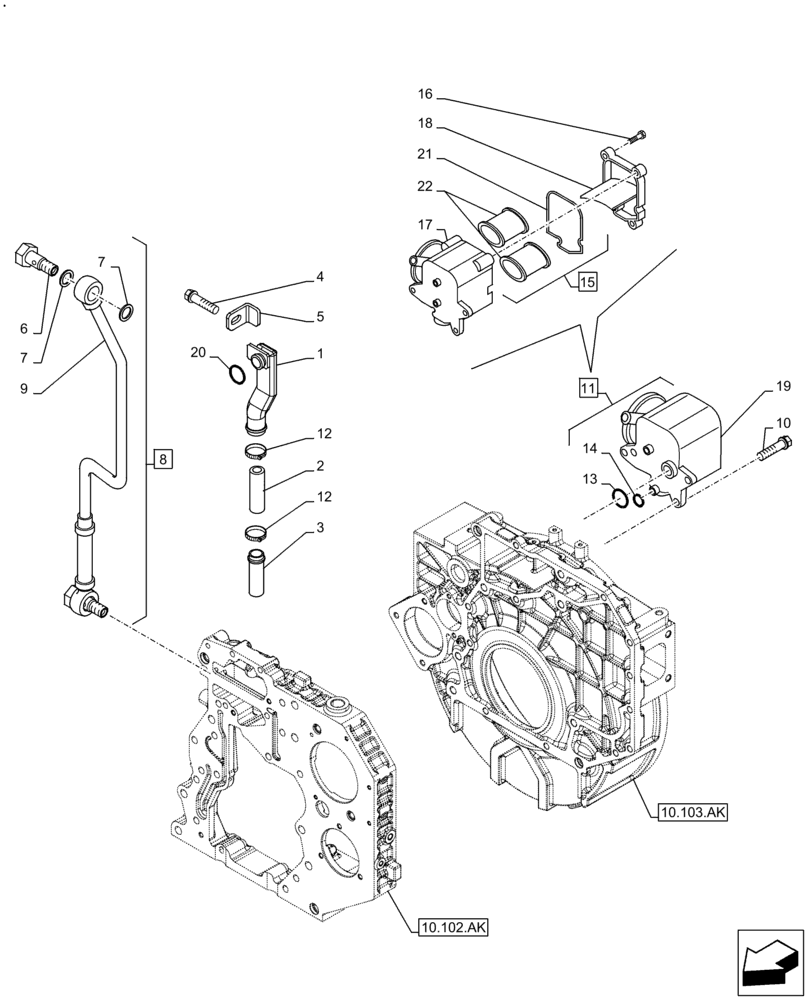

Запчасти Case F4HE9684U J104 (10.304.AP) - CRANKCASE VENTILATION SYSTEM (10) - ENGINE

1

4897534

TUBE

1шт.

2

4897546

RUBBER SLEEVE

Alternative

1шт.

2

2854521

HOSE

Alternative

1шт.

3

4897547

TUBE

1шт.

4

4897537

SCREW

M6 x 1 x 10

1шт.

5

4897536

BRACKET

1шт.

6

2852772

BANJO BOLT

M12 x 1.5

2шт.

7

4899926

SEALING WASHER,11.8mm ID x 18.0mm OD x 1.5mm Thk

ID = 11.8

4шт.

8

4899219

TUBE

ASSY, Incl 6, 7, 9

1шт.

9

NSS

NOT SOLD SEPARAT

Pipe, Incl in 8

1шт.

10

4899092

SCREW,Hex Flg, M6 x 1 x 25

M6 x 1.0 x 25

3шт.

11

4892871

BREATHER

ASSY, Incl 13, 14, 19

1шт.

12

4893234

HOSE CLAMP

Alternative

2шт.

12

2831016

HOSE CLAMP

from 25.2 mm to 29 mm, Alternative

2шт.

13

4898372

O-RING,13.11mm ID x 2.62mm Width

ID = 13.11 x 2.62

1шт.

14

2830304

O-RING

1шт.

15

2992447

FILTER

ASSY, Incl 21, 22

2шт.

16

2830301

SELF-TAP SCREW

6шт.

17

2830307

BREATHER

1шт.

18

2830302

COVER

1шт.

19

NSS

NOT SOLD SEPARAT

Breather, Incl in 11

1шт.

20

4898439

O-RING,20.29mm ID x 2.62mm Width

ID = 29 x 2.62

1шт.

21

2830303

GASKET

Incl in 15

1шт.

22

NSS

NOT SOLD SEPARAT

Filter, Incl in 15

2шт.
