(10.250.AD) - TURBOCHARGER OIL SUPPLY LINE

Запчасти Case F4HE9684U J104 (10.250.AD) - TURBOCHARGER OIL SUPPLY LINE (10) - ENGINE

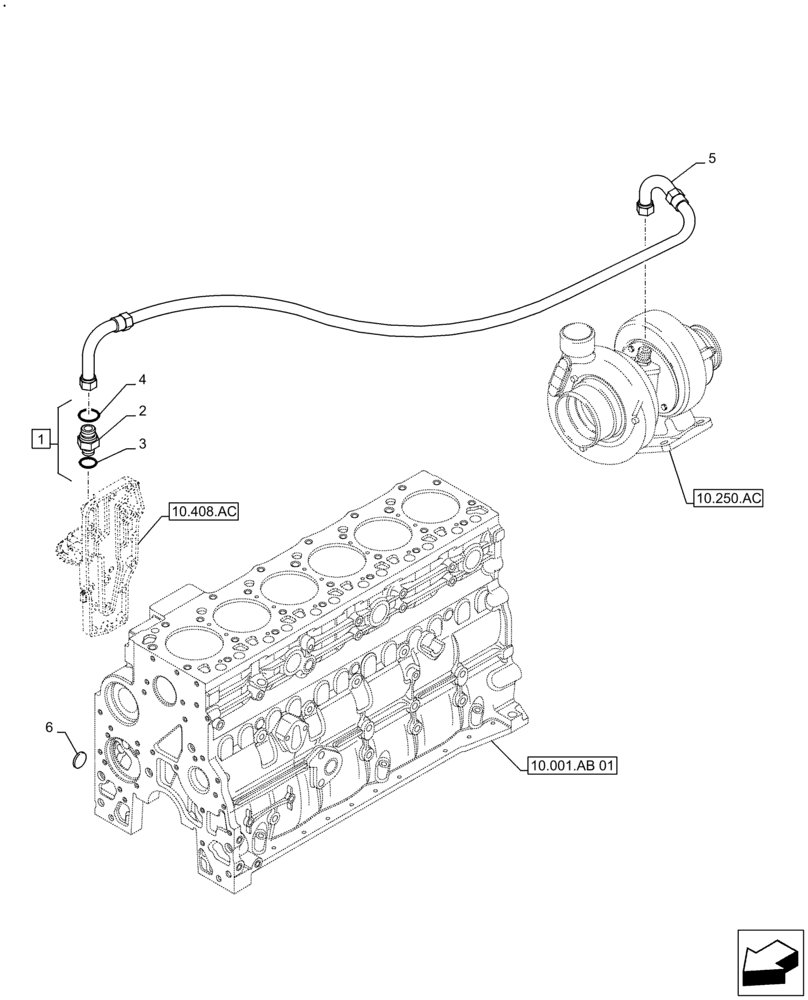

Схема запчастей Case F4HE9684U J104 - (10.250.AD) - TURBOCHARGER OIL SUPPLY LINE (10) - ENGINE
5
1
10.250.ac
3
4
10.408.ac
2
6
10.001.ab 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Junction, Incl in 1

1шт.

3

4895610

O-RING,2.2mm Thk x 9.3mm ID

ID = 9.3 x 2.2

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

2852746

HOSE,6.35mm ID x 698mm L

1шт.

6

4895089

PLUG,0.886" L

1шт.

Выбрано товаров: 6
