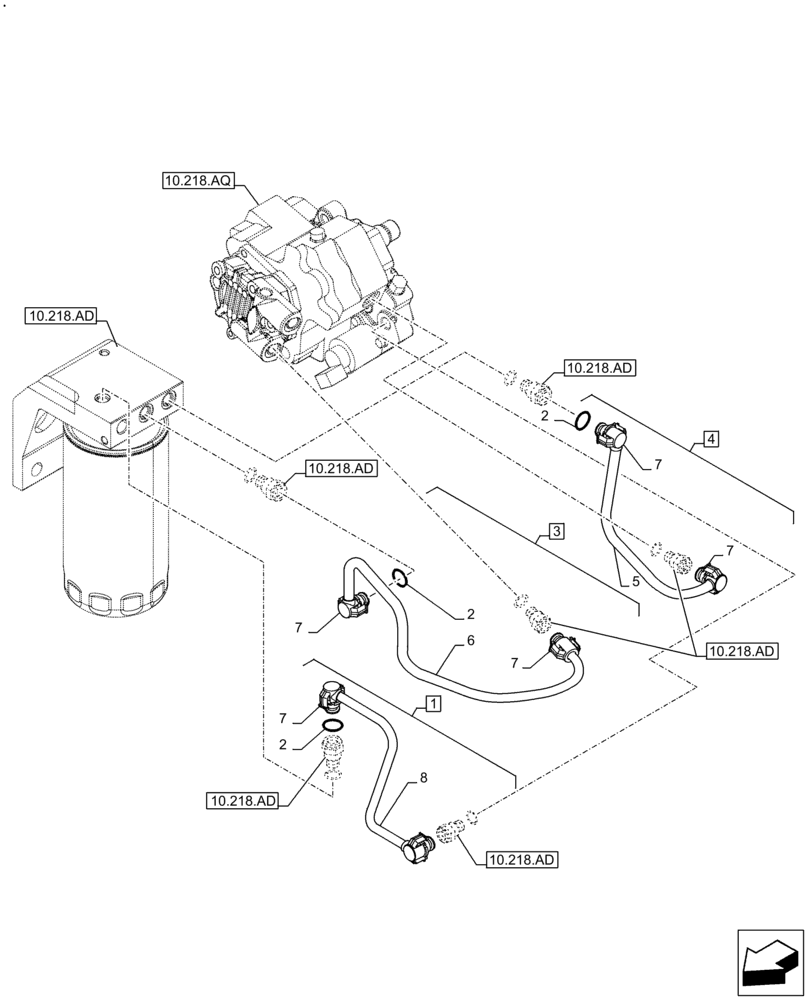

Запчасти Case F4HE9684U J104 (10.210.AF) - FUEL SUPPLY LINES (10) - ENGINE

1

2855427

INJECTION PIPE

ASSY, Incl 2, 7

1шт.

2

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

ID = 8.0 x 2.5

8шт.

3

2855428

INJECTION PIPE

ASSY, Incl 2, 6

1шт.

4

2855430

INJECTION PIPE

ASSY, Incl 2, 5

1шт.

5

NSS

NOT SOLD SEPARAT

Pipe, incl in 4

1шт.

6

NSS

NOT SOLD SEPARAT

Pipe, incl in 3

1шт.

7

2854572

90 ELBOW

6шт.

8

NSS

NOT SOLD SEPARAT

Pipe, incl in 1

1шт.
