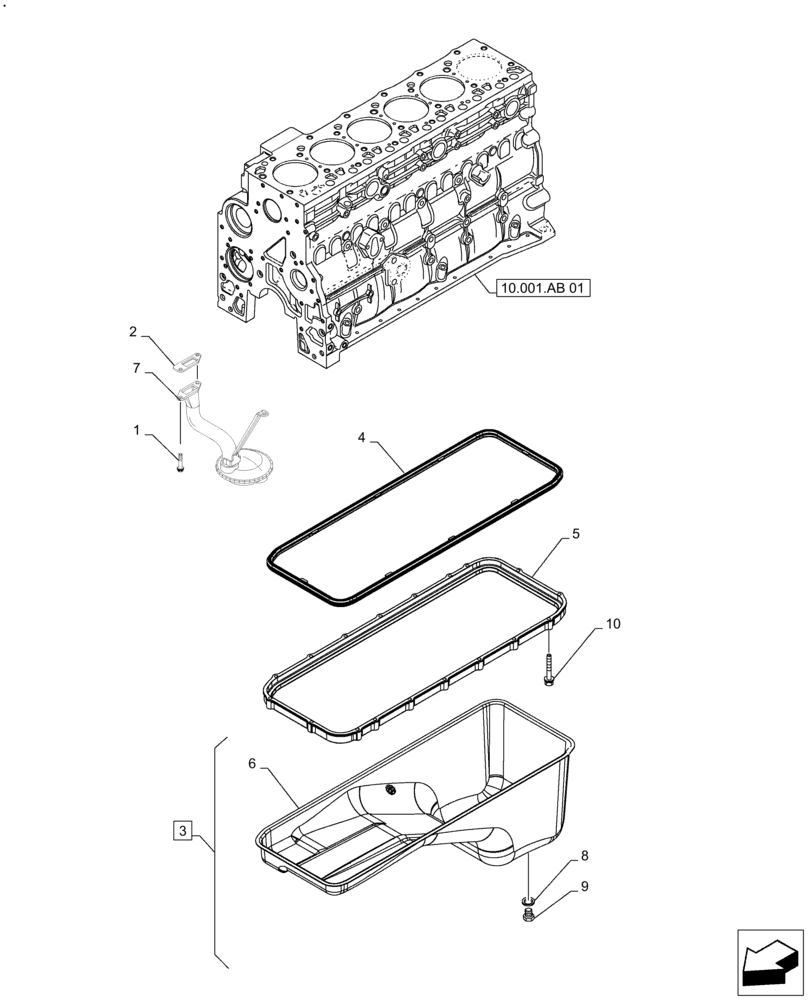

Запчасти Case F4HE9684U J104 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

2

4898301

GASKET,0.42mm Thk

1шт.

3

2852308

ENGINE OIL PAN

ASSY, Incl 6, 8, 9

1шт.

4

4897861

OIL PAN GASKET SET,17.3mm Thk

1шт.

5

4897858

SPACER

1шт.

6

NSS

NOT SOLD SEPARAT

Engine oil pan, incl in 3

1шт.

7

504388529

FILTER STRAINER

1шт.

8

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

9

2853728

O-RING,M23.47 ID x 2.62 Thk

1шт.

9

4895584

O-RING,0.924mm ID x 0.103mm Width

1шт.

10

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.
