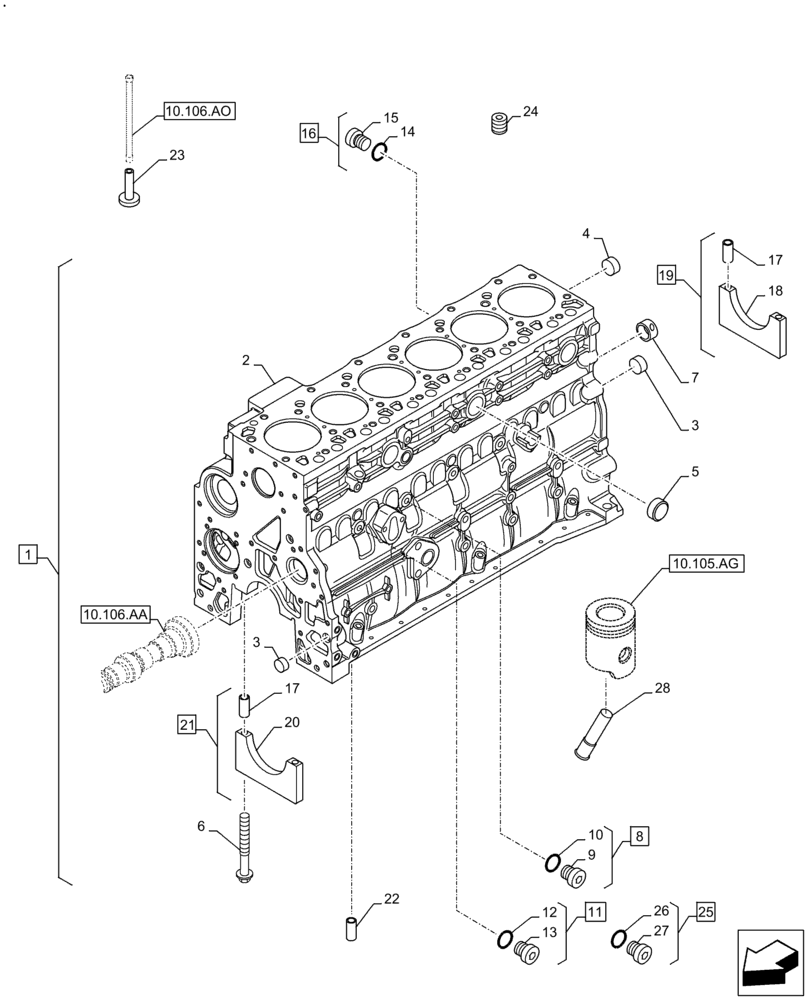

Запчасти Case F4HE9684U J104 (10.001.AB[01]) - CRANKCASE (10) - ENGINE

1

2830074

CYLINDER BLOCK,6 Cylinders

ASSY, Incl 2 - 7, 19, 21

1шт.

2

NSS

NOT SOLD SEPARAT

Crankcase, Incl in 1

1шт.

3

4895039

EXPANSION PLUG,M17.73

2шт.

4

4895038

EXPANSION PLUG,M58.06

6шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

M12 x 1.5 x 120

14шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

8

4895605

HEX SOCKET PLUG,M14 x 1.5

ASSY, Incl 9, 10

2шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

10

4899115

O-RING,2.2mm Thk x 11.3mm ID

ID = 11.3 x 2.2

1шт.

11

4899009

PLUG,M10 x1

ASSY, Incl 12, 13

2шт.

12

4899072

O-RING,1.6mm Thk x 8.1mm ID

ID = 8.1 x 1.6

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

14

4895393

O-RING,2.2mm Thk x 15.3mm ID

ID = 15.3 x 2.2

1шт.

15

4895394

HEX SOCKET PLUG,M18 x 1.5

1шт.

16

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 14, 15

3шт.

17

4899026

DOWEL,M18 x 10

4шт.

18

4892952

BEARING CAP,27.5 mm

1шт.

19

4895921

BEARING ASSY,86.1mm D

ASSY, Incl 17, 18

1шт.

20

4892951

BEARING CAP,24.5 mm

1шт.

21

4895919

BEARING ASSY,86.1mm D

ASSY, Incl 17, 20

6шт.

22

4895049

DOWEL,M16.05 x 10

2шт.

23

4899803

TAPPET

12шт.

24

4895078

PIPE PLUG,1/2"-14

1шт.

24

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

25

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Incl 26, 27

1шт.

26

4895625

O-RING,13.3mm ID x 2.2mm Width

ID = 13.3 x 2.2

1шт.

27

NSS

NOT SOLD SEPARAT

Plug, Incl in 25

1шт.

28

4896865

LUBE OIL NOZZLE

6шт.
