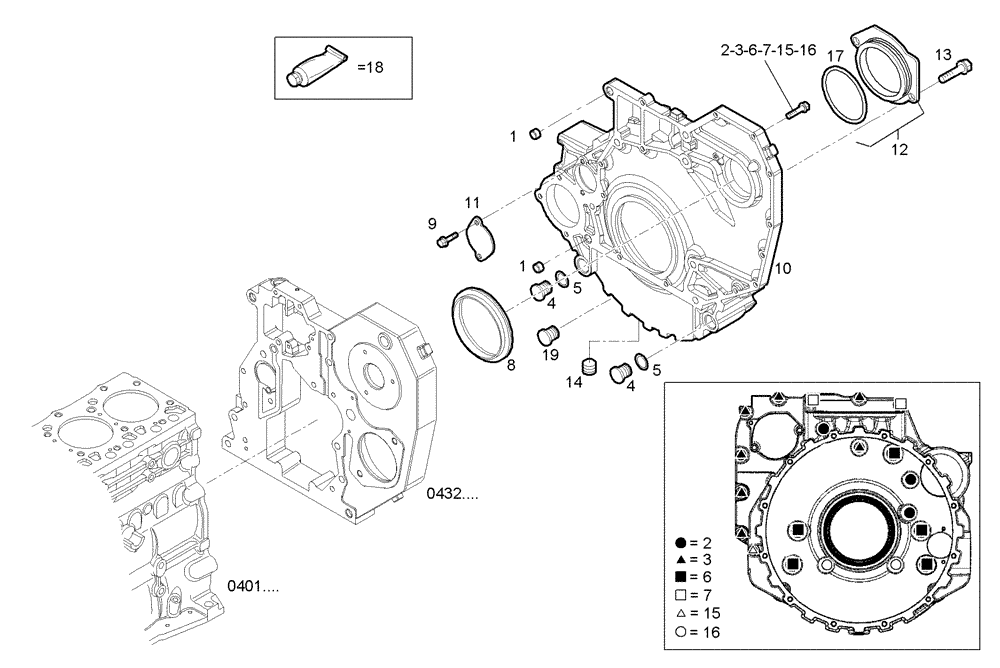

Запчасти Case F4GE9454K J604 (0435.030) - FLYWHEEL HOUSING

1

4899026

DOWEL,M18 x 10

DOWEL PIN

2шт.

2

4899109

SCREW,Hex, M10 x 1.5 x 80

HEXAGON BOLT, M10X1,5X80 MM

3шт.

3

4892915

FLANGE BOLT,Hex, M10 x 1.5 x 40mm

HEXAGON BOLT, M10X1,5X40 MM

7шт.

4

4895378

BUTTON PLUG,M29.2

PLUG, dia=29 MM

2шт.

5

17288480

O-RING,21.81mm ID x 3.53mm

O-RING, 3,53x21,81

2шт.

6

4899076

SCREW,Hex Flg, M12 x 1.75 x 80

HEXAGON BOLT, M12X80 MM

5шт.

7

4899074

SCREW,Hex Flg, M12 x 1.75 x 120

HEXAGON BOLT

2шт.

8

4890833

OIL SEAL,M130 x 155 x 12.5/16

SHAFT SEAL

1шт.

9

4899068

BOLT,Flng, M8 x 1.25 x 16mm

HEXAGON BOLT, M8X17 MM

2шт.

10

504128015

FLYWHEEL HOUSING

FLYWHEEL

1шт.

11

4895155

COVER

COVER

1шт.

12

504115364

COVER

COVER, ASSY

1шт.

13

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

HEXAGON BOLT, M8X1.25X20

2шт.

14

4893036

PIPE PLUG,3/4"-14 NPTF

THREADED PLUG

1шт.

15

4899143

SCREW,Hex Flg, M10 x 1.5 x 140

HEXAGON BOLT

1шт.

16

2852865

FLANGE BOLT,Hex, Shldr, Lkg, M10 x 33mm

HEXAGON BOLT, M10X40 MM

2шт.

17

17285481

GASKET,0.103" Thk x 2.987" ID, -151

O-RING, dia=75,87 MM SP=2,62 MM

1шт.

18

2992504

LOCTITE

ADHESIVE/STICKER, LOCTITE

1шт.

19

504177632

THREADED PLUG

PLUG

1шт.
