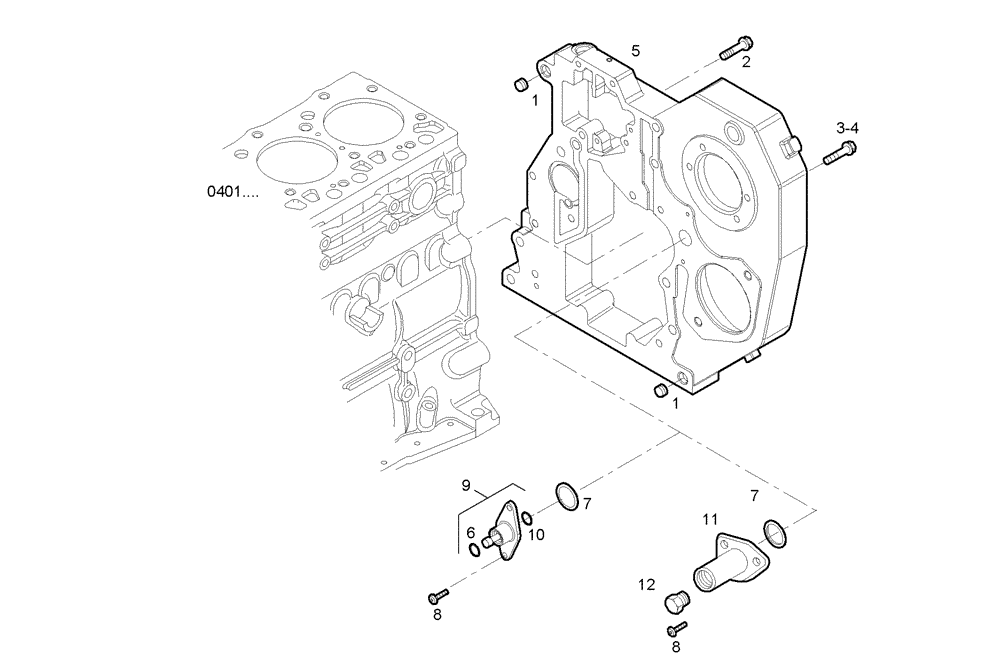

Запчасти Case F4GE9454K J604 (0432.007) - REAR C.CASE COVER

1

4899026

DOWEL,M18 x 10

DOWEL PIN

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

HEXAGON BOLT

4шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

HEXAGON BOLT

5шт.

4

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

HEXAGON BOLT

2шт.

5

2852619

HOUSING

TIMINGGEAR HOUSIN

1шт.

6

504079852

SPRING LOCKWASHER, UP TO # 295151

LOCK WASHER

1шт.

7

17278781

O-RING

O-RING

1шт.

8

4895355

SCREW,M5 x 0.8 x 17mm, Cl 8.8

SHEAR SCREW, M5X17 MM

2шт.

9

504074001

COVER

LOCKING PLATE, ASSY, UP TO # 295151

1шт.

10

17278090

O-RING,10.82mm ID x 1.78mm

O-RING, UP TO # 295151

1шт.

11

504170787

LOCKING PLATE, FROM # 295152

HOUSING

1шт.

12

16882515

PLUG

PLUG, FROM # 295152

1шт.
