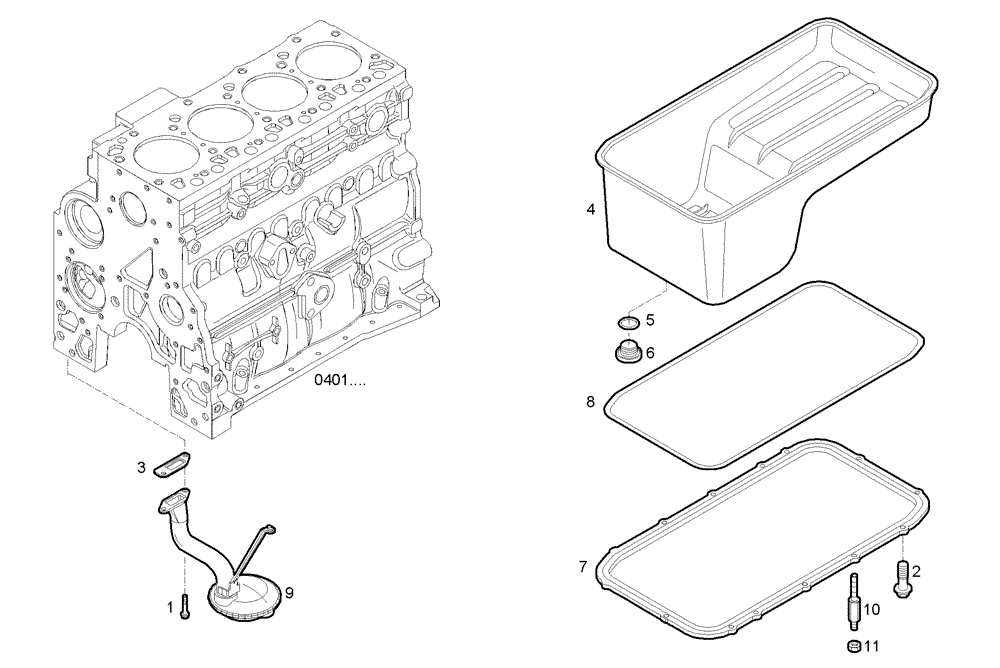

Запчасти Case F4GE9454K J604 (0420.159) - OIL SUMP

1

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

HEXAGON BOLT, M8X20 MM

2шт.

2

16586724

SCREW,M8 x 1.25 x 40mm

SCREW, M8X1,25X40 MM

13шт.

3

4898301

GASKET,0.42mm Thk

FLAT ENGINE GASKET

1шт.

4

2852205

ENGINE OIL PAN

OIL SUMP

1шт.

5

4895584

O-RING,0.924mm ID x 0.103mm Width

O-RING

1шт.

6

4894139

PLUG,Hex Soc, M22 x 1.5

THREADED PLUG, M22X1,5

1шт.

7

4897876

SPACER

SPACING BAR

1шт.

8

4897877

OIL PAN GASKET SET

OIL SUMP GASKET

1шт.

9

2852528

STRAINER ELEMENT

SUCTION STRAINER

1шт.

10

8031476

SCREW

HEXAGON BOLT

1шт.

11

17044731

FLANGE NUT,Hex, M8 x 1.25, Cl 10

HEXAGON NUT, M8

1шт.
