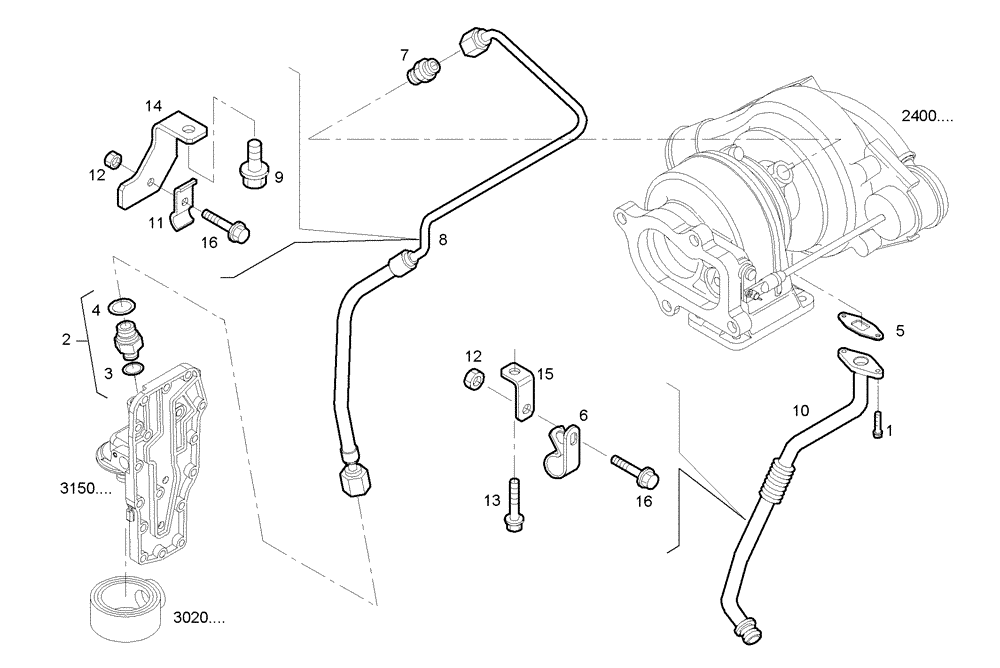

Запчасти Case F4GE9454K J604 (3063.006) - TURBOCHARGER OIL LINES

1

4895164

SCREW,Hex, Flg Hd, M6 x 16

HEXAGON BOLT

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

THREADED UNION, ASSY

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

O-RING

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

O-RING

1шт.

5

4899467

GASKET

FLAT ENGINE GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

BRACKET

1шт.

7

2852229

HYD CONNECTOR,M10 x 1.25 x 9/16"-18

THREADED UNION

1шт.

8

2852256

TUBE

OIL LINE

1шт.

9

16677735

SCREW,M12 x 25mm

HEXAGON BOLT, M12X25 MM

1шт.

10

504033527

PIPE

OIL LINE

1шт.

11

2852258

CLAMP

FASTENING BRACKET

1шт.

12

2852197

FLANGE NUT,M6 x 1

HEXAGON NUT, M6

2шт.

13

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X16 MM

1шт.

14

2852563

BRACKET

FASTENING BRACKET

1шт.

15

2852196

BRACKET

FASTENING BRACKET

1шт.

16

18137825

BOLT,Hex, M6 x 16mm

HEXAGON BOLT, M6X16

2шт.
