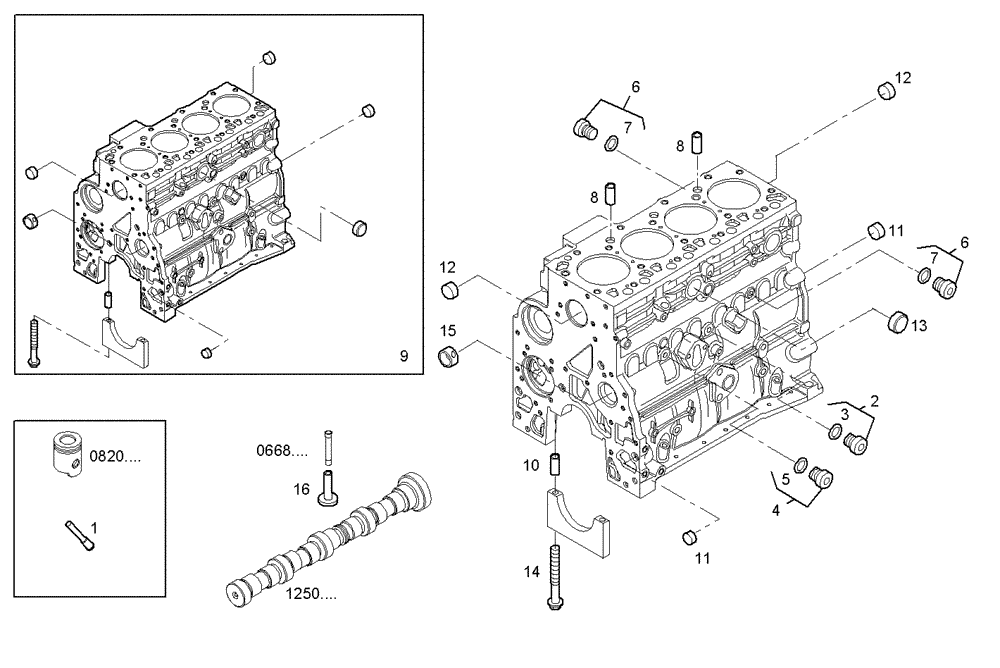

Запчасти Case F4GE9454K J604 (0401.004) - CRANKCASE

1

4896865

LUBE OIL NOZZLE

OIL NOZZLE

4шт.

2

4895605

HEX SOCKET PLUG,M14 x 1.5

PLUG, ASSY M14X1,5, UP TO # 323585

1шт.

3

4899115

O-RING,2.2mm Thk x 11.3mm ID

O-RING, UP TO # 323585

1шт.

4

4899009

PLUG,M10 x1

THREADED PLUG, ASSY M10X1, UP TO # 323585

1шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

O-RING, UP TO # 323585

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

THREADED PLUG, ASSY M18X1,5

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

O-RING

2шт.

8

4895049

DOWEL,M16.05 x 10

DOWEL PIN

2шт.

9

2830083

CYLINDER BLOCK,4 Cylinders

CRANKCASE

1шт.

10

4899026

DOWEL,M18 x 10

DOWEL PIN

10шт.

11

4895039

EXPANSION PLUG,M17.73

PLUG, dia=17 MM

2шт.

12

4895038

EXPANSION PLUG,M58.06

PLUG, dia=58 MM

4шт.

13

4895228

EXPANSION PLUG,35.23mm x 7.94mm

PLUG, dia=35 MM

2шт.

14

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

HEXAGON BOLT, M12X120 MM

10шт.

15

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

CAMSHAFT BEARING

1шт.

16

J931623

TAPPET

TAPPET

8шт.
