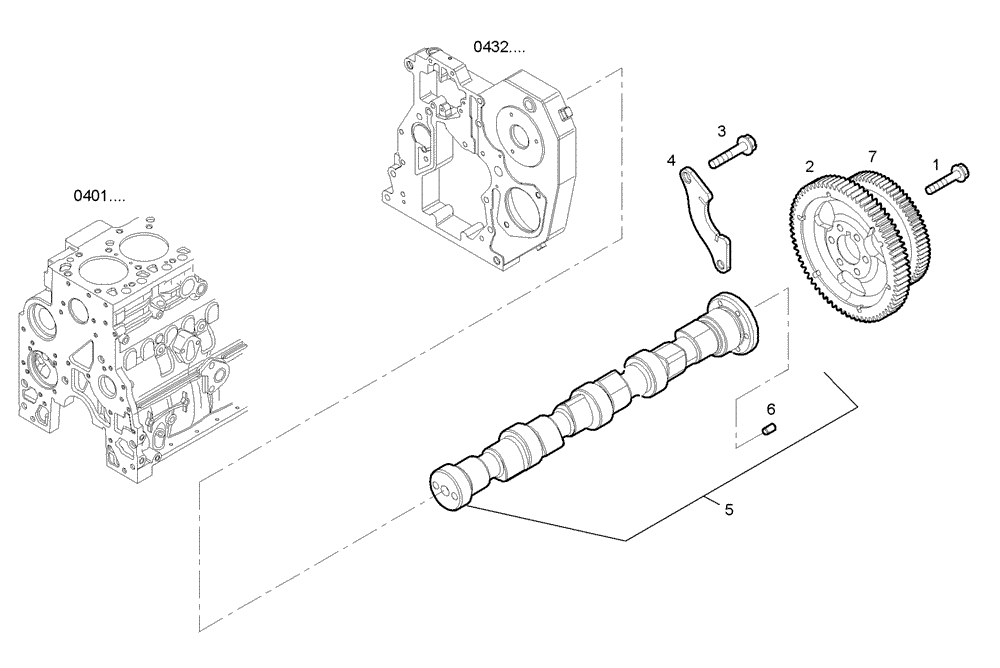

Запчасти Case F4GE9454K J604 (1250.031) - TIMING PARTS

1

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

HEXAGON BOLT

6шт.

2

2852062

GEAR,72T

CAMSHAFT PINION

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

HEXAGON BOLT, M8X17 MM

2шт.

4

4897457

SUPPORT

YOKE

1шт.

5

504229312

CAMSHAFT, ASSY

CAMSHAFT

1шт.

6

4899080

DOWEL,M6 x 8 L

DOWEL PIN

1шт.

7

2855183

GEAR,72T

CAMSHAFT PINION

1шт.
