Запчасти Case F4GE9454K J604 (0610.023) - CYLINDER HEAD

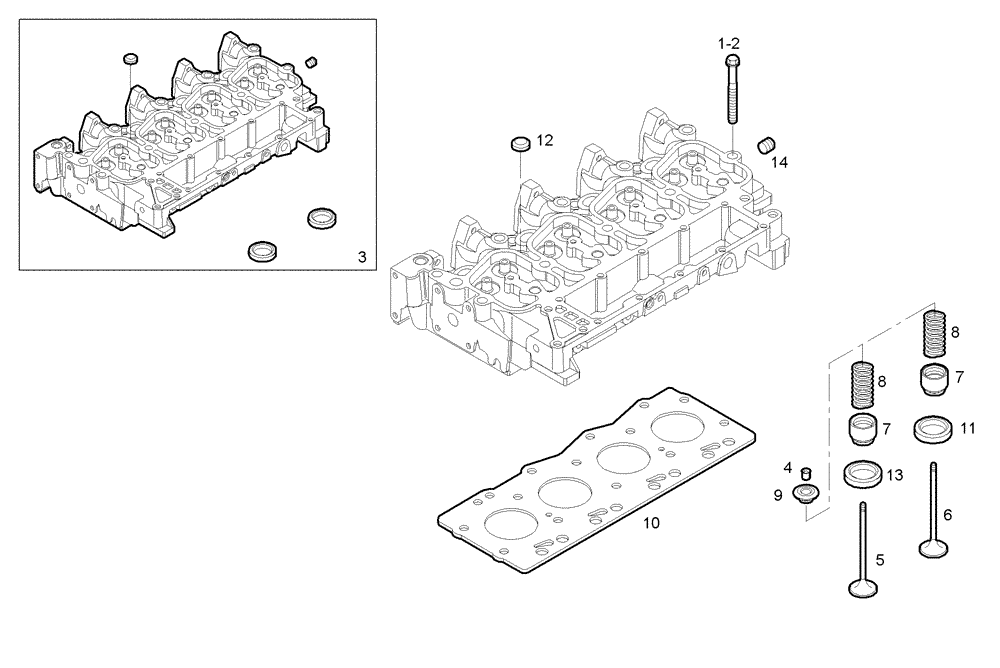

Схема запчастей Case F4GE9454K J604 - (0610.023) - CYLINDER HEAD

Артикул

Название

Примечание

Количество

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

HEXAGON BOLT, M15X1,75

4шт.

2

4892859

BOLT,Flng, M12 x 1.75 x 143mm

HEXAGON BOLT, M15X1,75

10шт.

3

504226952

CYLINDER HEAD

SPARE PART

1шт.

4

4895183

COLLET

VALVE CONE

16шт.

5

4895188

STD EXHAUST VALVE

EXHAUST VALVE

4шт.

6

4895187

STD INLET VALVE

INLET VALVE

4шт.

7

4895347

SEAL

CAP

8шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

ENGINE VALV.SPRING

8шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

SPRING CAP

8шт.

10

2830919

CYLINDER HEAD GASKET,1.4mm Thk

CYL.HEAD GASKET

1шт.

11

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

VALVE SEAT STD., EXHAUST

4шт.

12

4895179

EXPANSION PLUG,M20.93

LOCK PLUG

3шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

VALVE SEAT STD., INTAKE

4шт.

14

4895085

EXPANSION PLUG,25.74mm

PLUG

1шт.

Выбрано товаров: 14
