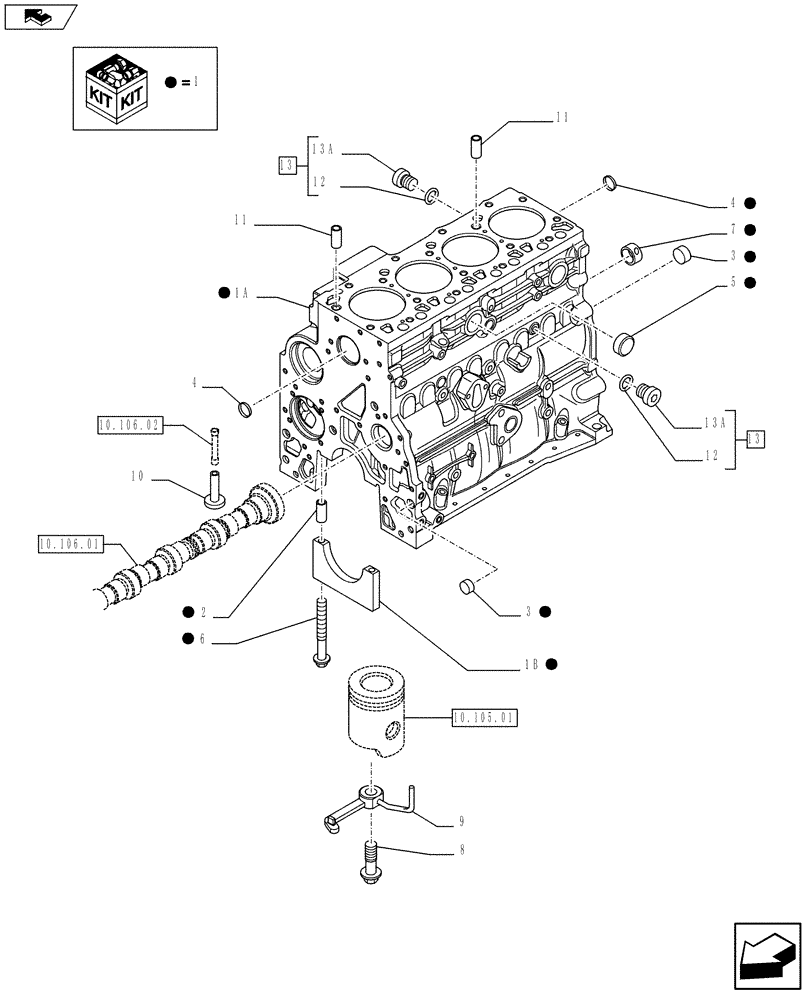

Запчасти Case F4GE9454K J604 (10.001.02) - CRANKCASE (2852007) (10) - ENGINE

1

2830082

CYLINDER BLOCK,4 Cylinders

Assy, Contains Ref. 1A, 1B, 2 - 7

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

1b

NSS

NOT SOLD SEPARAT

1шт.

2

4899026

DOWEL,M18 x 10

10шт.

3

4895039

EXPANSION PLUG,M17.73

3шт.

4

4895038

EXPANSION PLUG,M58.06

4шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

2шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

8

4894218

SCREW,Special, M8 x 20

4шт.

9

2852203

NOZZLE, PISTON COOLI

4шт.

10

J931623

TAPPET

8шт.

11

4895049

DOWEL,M16.05 x 10

2шт.

12

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

13

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY

2шт.

13a

NSS

NOT SOLD SEPARAT

2шт.
