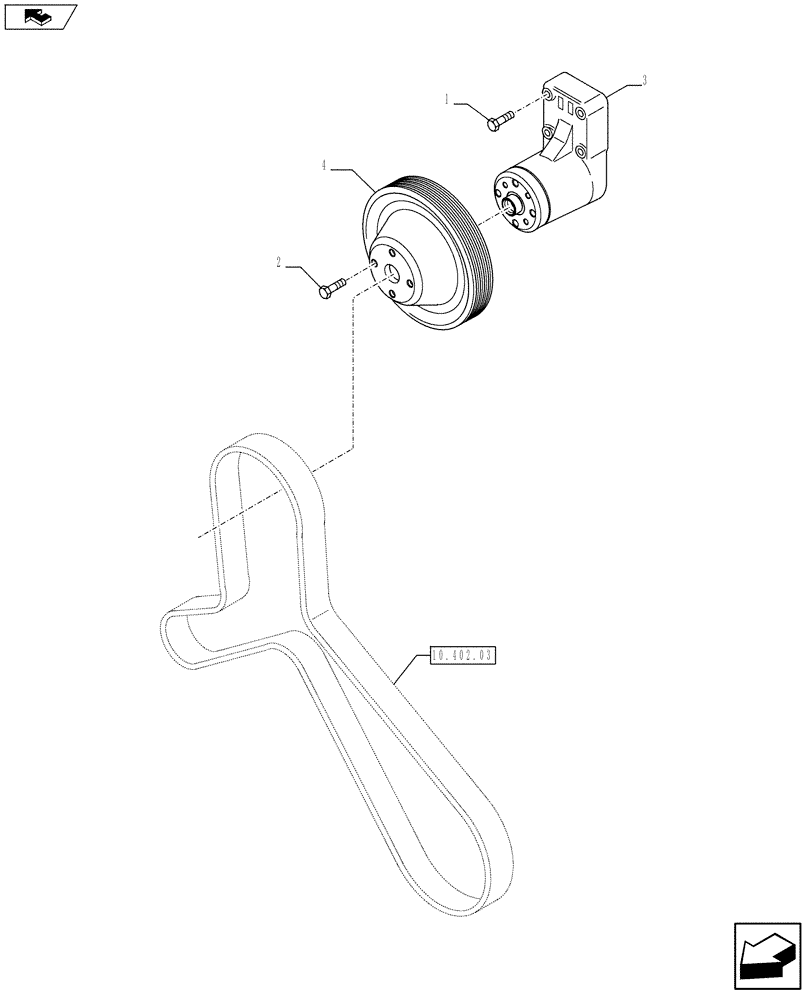

Запчасти Case F4GE9454K J604 (10.414.03) - FAN DRIVE (2853710-2855164) (10) - ENGINE

1

2852170

SUPPORT

Assy, Contains Ref. 1A, 5 - 9

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

4899053

SCREW,Hex Flg, M8 x 45

4шт.

3

4890343

PULLEY,130.25mm OD

1шт.

4

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

4шт.

5

2852171

SNAP RING

1шт.

6

2852172

BOLT,Flng, M10 x 1.5 x 70mm

1шт.

7

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

8

4892426

HUB

1шт.

9

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.
