(10.304.01[02]) - PUMP, ENGINE OIL & RELATED PARTS (2853413)

Запчасти Case F4GE9454K J604 (10.304.01[02]) - PUMP, ENGINE OIL & RELATED PARTS (2853413) (10) - ENGINE

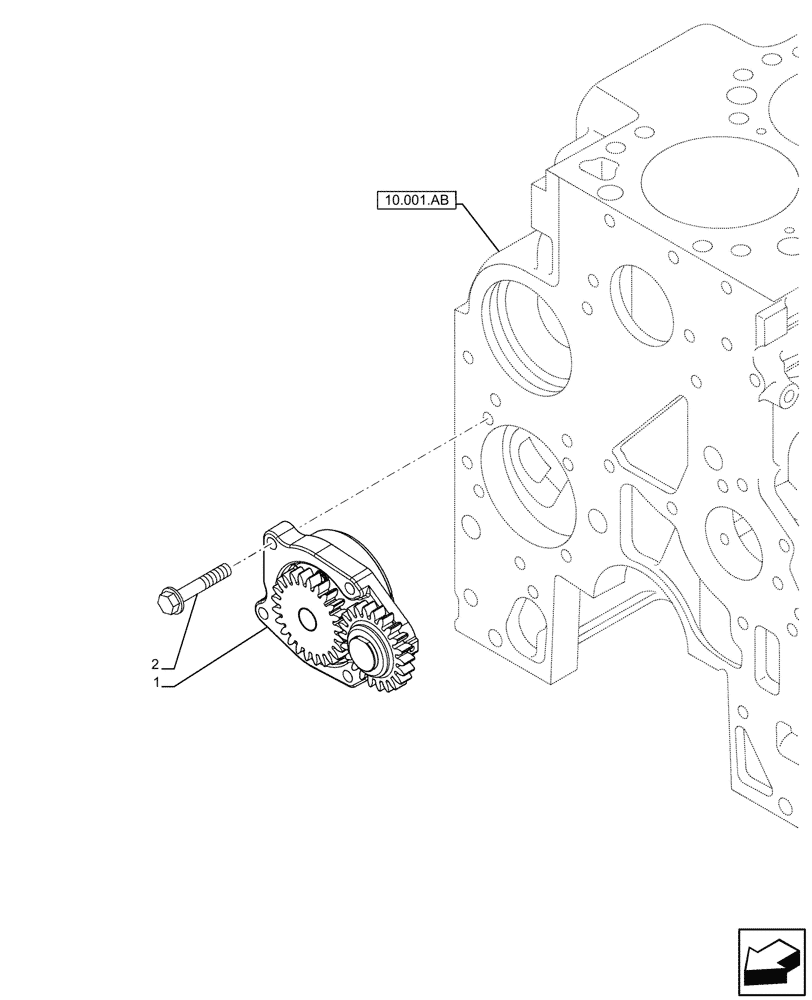

Схема запчастей Case F4GE9454K J604 - (10.304.01[02]) - PUMP, ENGINE OIL & RELATED PARTS (2853413) (10) - ENGINE
10.001.ab
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504047580

UP TO ENGINE # 1412486

ENGINE OIL PUMP

1шт.

1

5802211973

FROM ENGINE # 1412487 - UP TO ENGINE # 1419648

ENGINE OIL PUMP

1шт.

1

504047580

FROM ENGINE # 1419649

ENGINE OIL PUMP

1шт.

2

4899090

SCREW,Hex Flg, M8 x 1.25 x 30

4шт.
