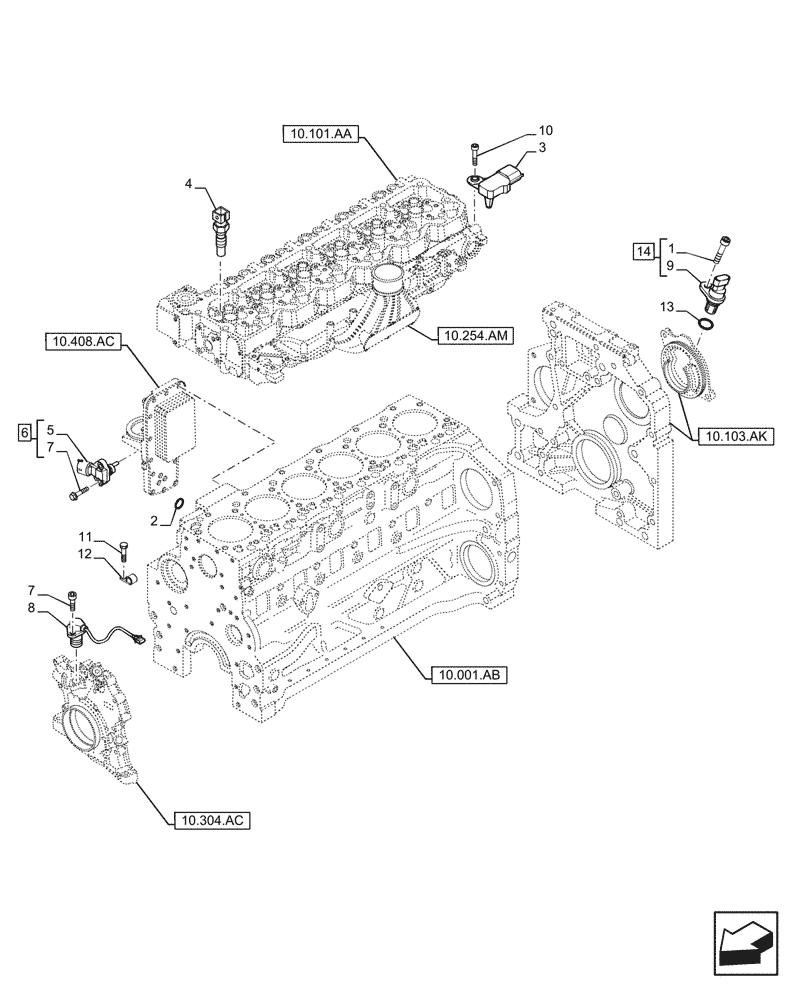

Запчасти Case F4DFE613N B006 (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS

1

504065023

SCREW,M6 x 16mm, Cl 8.8

1шт.

2

4897302

CABLE CLIP,5.5mm ID

1шт.

3

504372225

SENSOR,Temperature / Pressure

1шт.

4

4897224

SENSOR

1шт.

5

NSS

NOT SOLD SEPARAT

Sensor, Incl in 6

1шт.

6

504358206

ASSY, Incl 6, 7

SWITCH,Pressure

1шт.

7

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

8

504049164

SENDER UNIT

1шт.

9

NSS

NOT SOLD SEPARAT

Sensor, Incl in 14

1шт.

10

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

1шт.

11

4899146

SCREW,Hex Flg, M8 x 1.25 x 20

2шт.

12

17314890

SPARE PART

2шт.

13

NSS

NOT SOLD SEPARAT

O-ring, Incl in 14

1шт.

14

4897242

SENSOR

ASSY, Incl 1, 9, 13

1шт.
