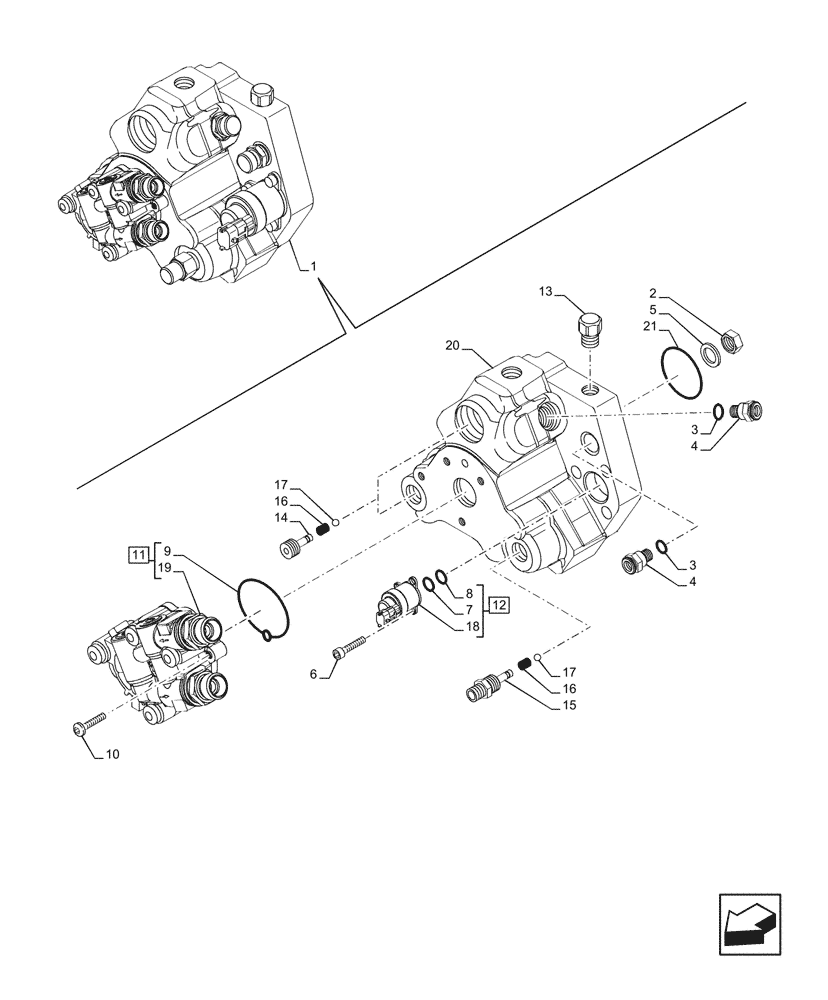

Запчасти Case F4DFE613N B006 (10.218.AQ[02]) - FUEL INJECTION PUMP, COMPONENTS (10) - ENGINE

1

5801633945

FUEL PUMP

1шт.

2

4890634

NUT,Hex, M18 x 1.5, RH

1шт.

3

42556616

SEAL,12.2mm ID x 15.4mm OD x 1.5mm Thk

1шт.

4

42559146

UNION

2шт.

5

17095814

WASHER

M18 x 30

1шт.

6

42556819

SCREW

3шт.

7

42541850

O-RING

1шт.

8

42541849

O-RING

1шт.

9

NS

NOT SERVICED

O-ring

1шт.

10

42556891

SCREW

4шт.

11

NS

NOT SERVICED

Fuel pump component, ASSY, Incl 9, 19

1шт.

12

42541851

SOLENOID

ASSY, Incl 7, 8, 18

1шт.

13

NS

NOT SERVICED

Valve

1шт.

14

NS

NOT SERVICED

Fitting

2шт.

15

42550486

VALVE

1шт.

16

NS

NOT SERVICED

Spring

3шт.

17

NS

NOT SERVICED

Ball

3шт.

18

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 12

1шт.

19

NSS

NOT SOLD SEPARAT

Injection pump component, Incl in 11

1шт.

20

NS

NOT SERVICED

Injection pump body

1шт.

21

8097764

O-RING

1шт.
