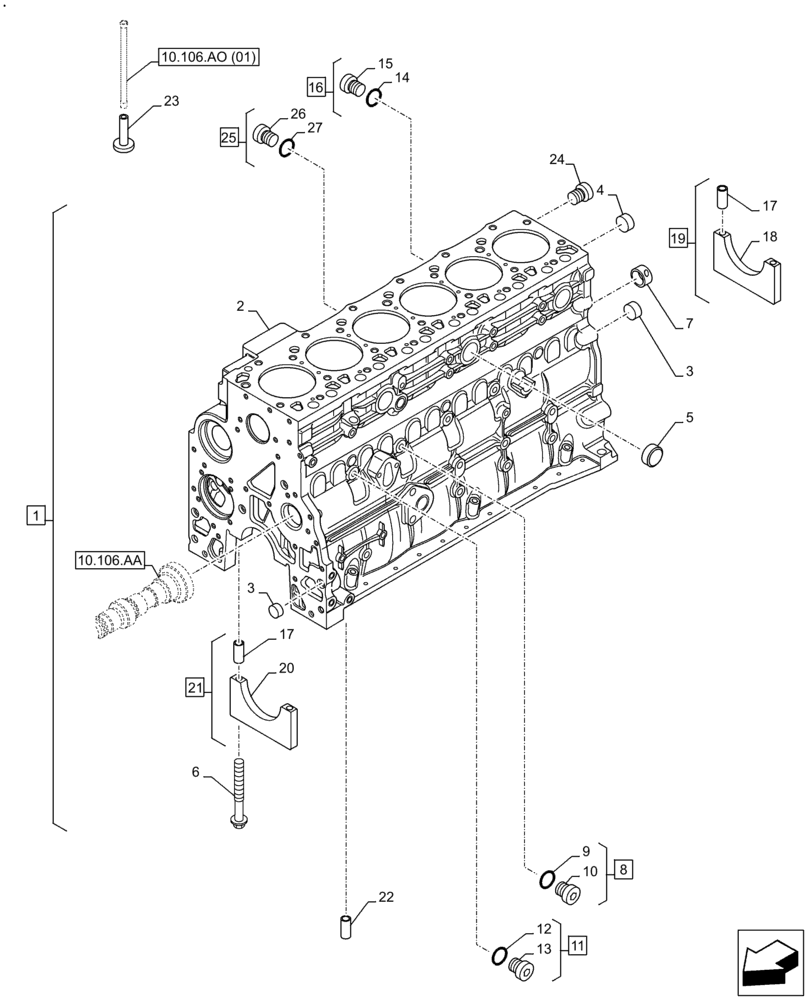

1
47607079
CYLINDER BLOCK
ASSY, Incl 2-7, 17-21, 24
1шт.
2
NSS
NOT SOLD SEPARAT
Crankcase, Incl in 1
1шт.
3
4895039
EXPANSION PLUG,M17.73
2шт.
4
4895038
EXPANSION PLUG,M58.06
6шт.
5
4895228
EXPANSION PLUG,35.23mm x 7.94mm
3шт.
6
4891353
SCREW,Flg Hd, M12 x 1.5 x 120
M12 x 1.5 x 120
14шт.
7
4895040
BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L
1шт.
8
4895605
HEX SOCKET PLUG,M14 x 1.5
ASSY, Incl 9,10
2шт.
9
4899115
O-RING,2.2mm Thk x 11.3mm ID
1шт.
10
NSS
NOT SOLD SEPARAT
Plug, Incl in 8
1шт.
11
4899009
PLUG,M10 x1
ASSY, Incl 12, 13
3шт.
12
4899072
O-RING,1.6mm Thk x 8.1mm ID
1шт.
13
NSS
NOT SOLD SEPARAT
Plug, Incl in 11
1шт.
14
4895393
O-RING,2.2mm Thk x 15.3mm ID
2шт.
15
4895394
HEX SOCKET PLUG,M18 x 1.5
2шт.
16
4895392
HEX SOCKET PLUG,M18 x 1.5
ASSY, Incl 14, 15
3шт.
17
4899026
DOWEL,M18 x 10
4шт.
18
47607067
1шт.
19
47607066
SUPPORT
1шт.
20
47607064
SUPPORT
2шт.
21
47607063
SUPPORT
6шт.
22
4895049
DOWEL,M16.05 x 10
2шт.
23
4891226
TAPPET
12шт.
24
2831364
LUBE OIL NOZZLE
1шт.
25
4895080
HEX SOCKET PLUG,M22 x 1.5
ASSY, Incl 26, 27
1шт.
26
NSS
NOT SOLD SEPARAT
Plug, Incl in 25
1шт.
27
2854072
SEALING RING,Square, 5.16mm Thk x 50.17mm ID
1шт.
