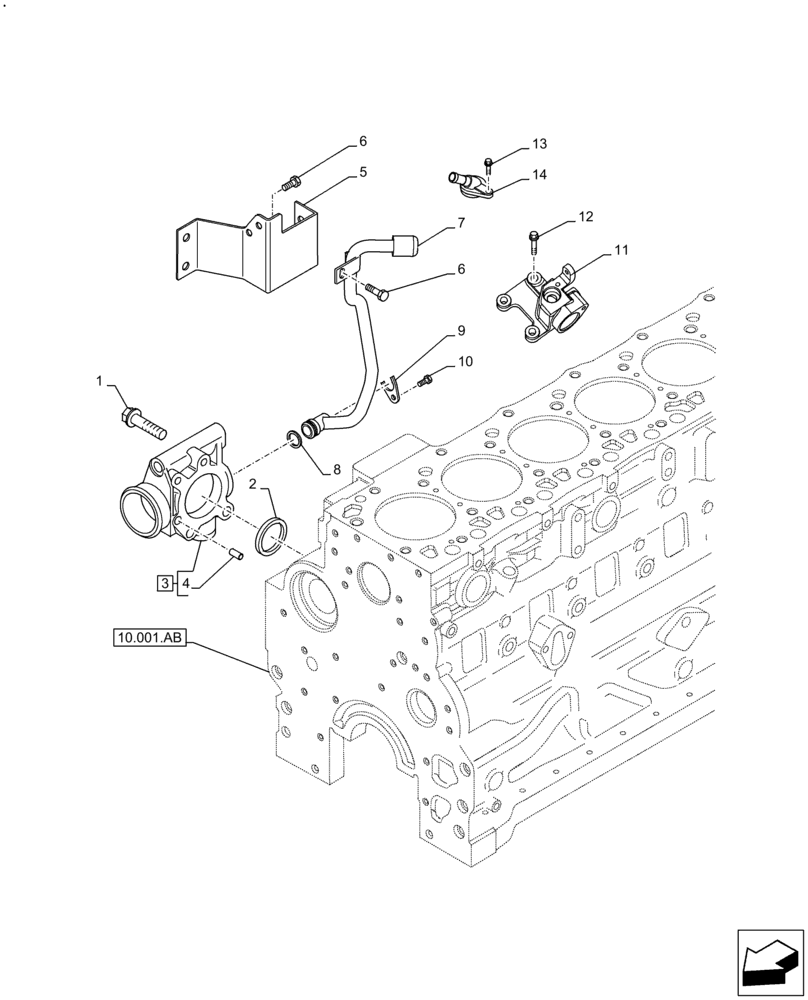

Запчасти Case F4DFE613J B006 (10.400.AP) - RADIATOR HOSE (10) - ENGINE

1

4895174

SCREW,Flg Hd, M10 x 1.5 x 65

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2859452

SUPPORT

ASSY; Incl 4

1шт.

4

NSS

NOT SOLD SEPARAT

PIN; Incl in 3

2шт.

5

47599153

PLATE

1шт.

6

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

3шт.

7

47599154

PIPE

1шт.

8

2853563

O-RING,20.29mm ID x 2.62mm

2шт.

9

2853564

BRACKET

2шт.

10

2854000

SELF-TAP SCREW,Hex, M6 x 16mm

2шт.

11

47599160

MANIFOLD

1шт.

12

2852403

FLANGE BOLT,Hex, M10 x 1.5 x 30mm

3шт.

13

2852212

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

1шт.

14

47599166

ELBOW UNION

1шт.
