Запчасти Case F4DFE613J A004 (10.304.01) - OIL PUMP (10) - ENGINE

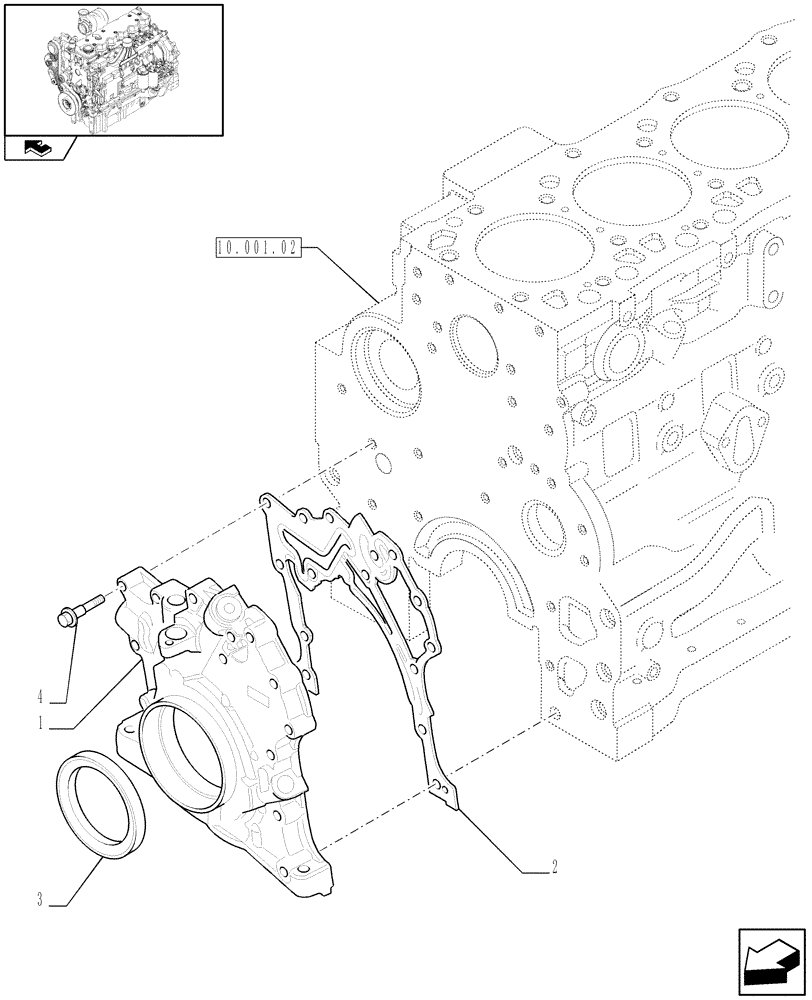

Схема запчастей Case F4DFE613J A004 - (10.304.01) - OIL PUMP (10) - ENGINE
3
2
10.001.02
home
4
1

Артикул

Название

Примечание

Количество

1

2831401

ENGINE OIL PUMP

1шт.

1

2830914R

REMAN-ENG OIL PUMP

Please see Attached Service Bulletin

1шт.

1

2830914C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

2830972

GASKET,2.3mm Thk

1шт.

3

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

4

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

11шт.

4

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

4

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

Выбрано товаров: 8
