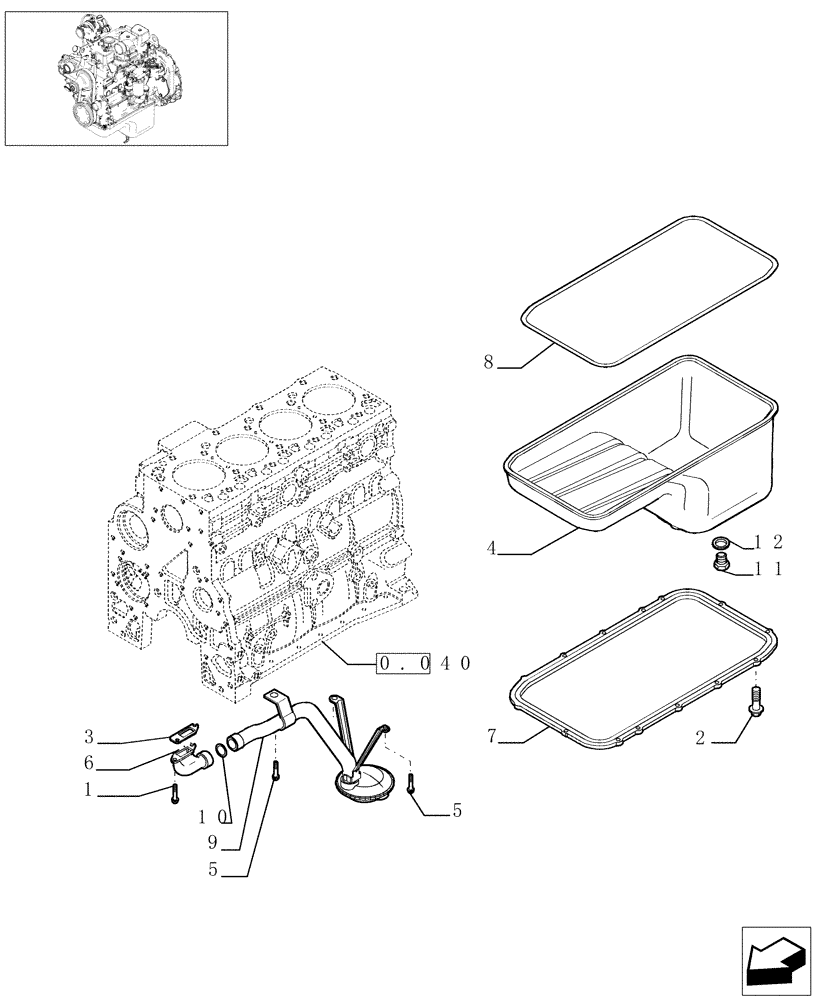

Запчасти Case F4DFE613G (0.04.2[01]) - ENGINE OIL SUMP (504084713)

1

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

14шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852205

ENGINE OIL PAN

- ASSY

1шт.

5

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

3шт.

6

2852238

ELBOW

22x1.5

1шт.

7

4897876

SPACER

1шт.

8

4897877

OIL PAN GASKET SET

1шт.

9

2853397

SUCTION PIPE

1шт.

10

2852237

SEALING RING

1шт.

11

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

12

4895584

O-RING,0.924mm ID x 0.103mm Width

1шт.
