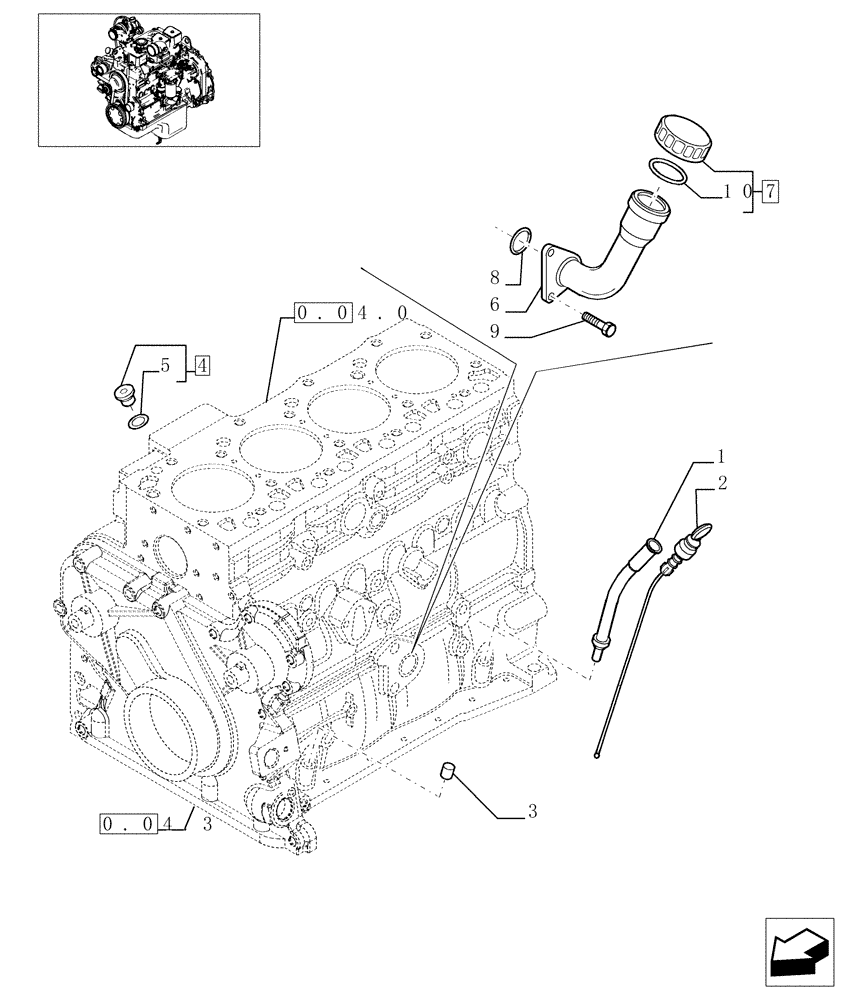

Запчасти Case F4DFE613G (0.27.0[01]) - ENGINE OIL DIPSTICK - (504063272 - 504087721)

1

2852698

TUBE ASSY.,106, 93 mm Length

- OIL LEVEL

1шт.

2

2852762

DIPSTICK

1шт.

3

4899036

PLUG

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

- Assy

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

2853407

NECK FILLER,143, 117.3 mm Length

1шт.

7

2853410

FILLER CAP,Female

-ASSY

1шт.

8

2852135

O-RING,2.6mm Thk x 37.7mm ID

1шт.

9

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

M6X18

2шт.

10

2853412

O-RING,0.21" Thk x 1.475" ID

1шт.
