Запчасти Case F4DFE613F A002 (10.105.02) - CONNECTING ROD (84364070) (10) - ENGINE

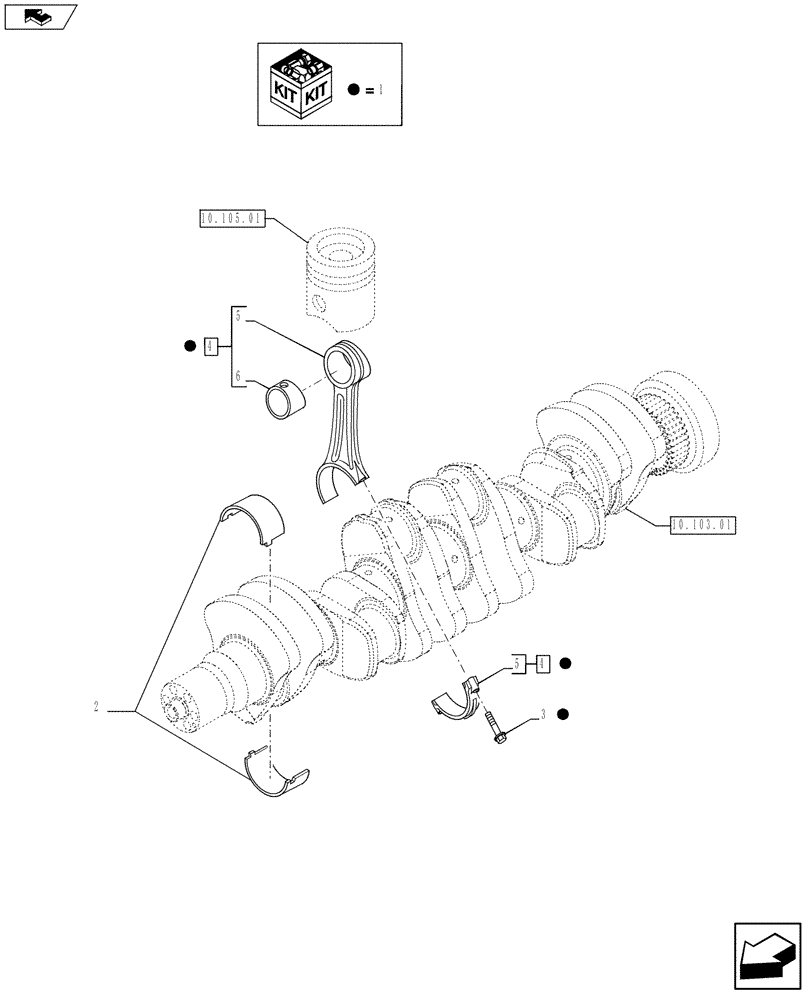

Схема запчастей Case F4DFE613F A002 - (10.105.02) - CONNECTING ROD (84364070) (10) - ENGINE
1
4
3
5
1
5
1
4
home
6
2
1
1
10.103.01
10.105.01

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

Assy, Contains Ref. 3, 4

6шт.

2831298R

REMAN-CONNECTING ROD

MAXXUM 115 EP EFFICIENT POWER MULTICONTROLLER , MAXXUM 115 EP EFFICIENT POWER , F4DFE613F*A002 ENGINE 504375961 - 84265770

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

2856309

CRANKSHAFT BEARING

6шт.

2

4892715

BEARING LINER

BEARING, CON. ROD

6шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

4895747

CONNECTING ROD

ASSY

1шт.

2831298R

REMAN-CONNECTING ROD

F4DFE613F*A002 ENGINE 504375961 - 84265770 ,(T6.155 ) ,MAXXUM 115 , all are Reman For New P/N 4895747

1шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

5

4895746

1шт.

6

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

Выбрано товаров: 11
