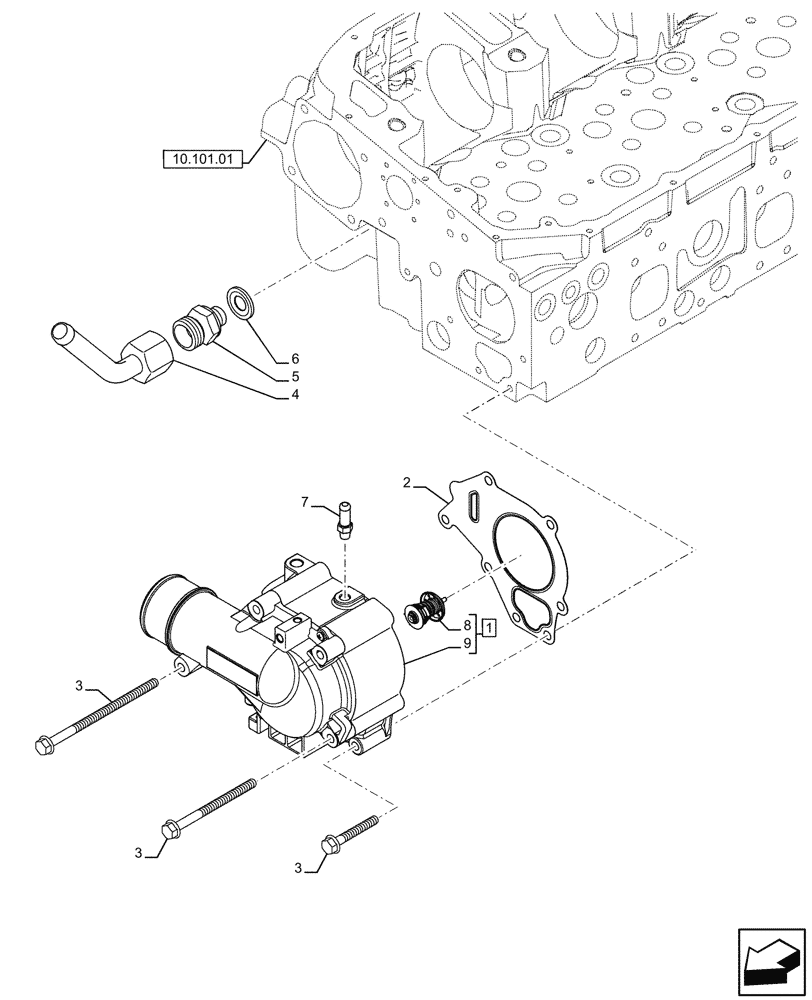

Запчасти Case F3DFA613B E004 (10.402.01[02]) - TEMPERATURE CONTROL (THERMOSTAT) - (504386845 - 504386850) (10) - ENGINE

1

5801611455

BODY

ASSY, Incl 8, 9

1шт.

2

504326852

GASKET

1шт.

3

16586925

BOLT,M8 x 50mm

2шт.

3

16598325

BOLT,Hex, M8 x 100mm

4шт.

3

16598624

SCREW,Hex Flg, M8 x 1.25 x 140mm

1шт.

4

504323337

TUBE

1шт.

5

504196249

FITTING

1шт.

6

87665413

SEALING WASHER,7.9mm ID x 17.0mm OD x 1.5mm Thk

1шт.

7

98475757

FITTING

1шт.

8

5801812878

THERMOSTAT

1шт.

9

NSS

NOT SOLD SEPARAT

Thermostat housing, Incl in 1

1шт.
