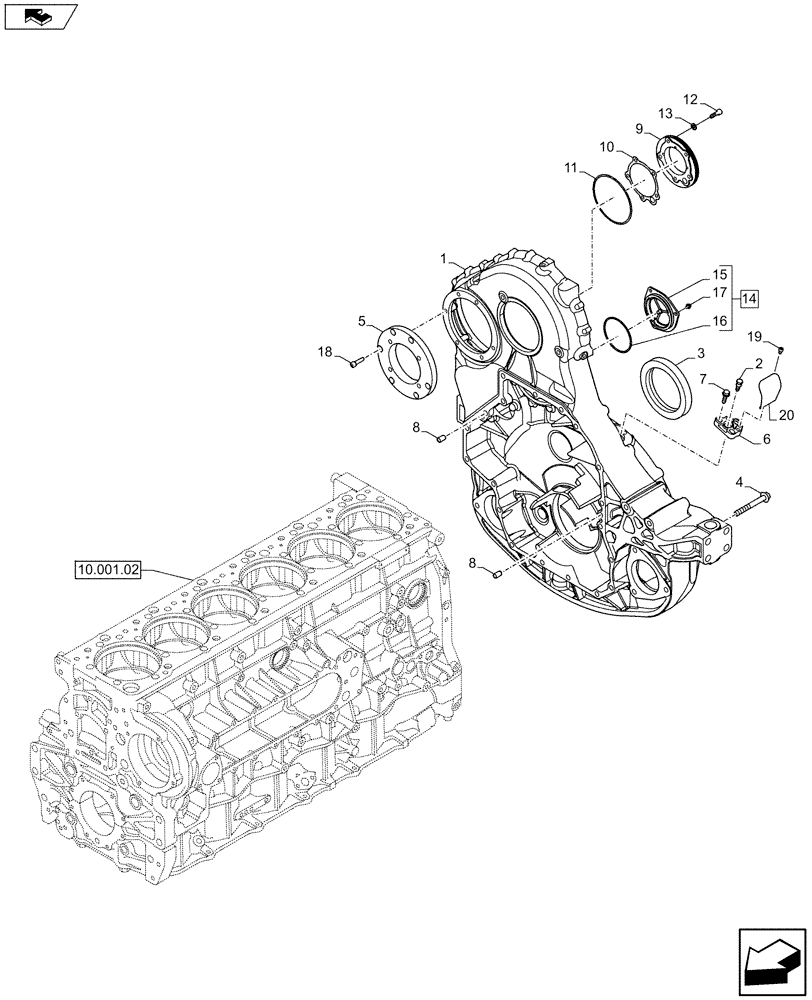

Запчасти Case F3DFA613B E003 (10.102.02) - FLYWHEEL CASE (5801441899 - 504386630) (10) - ENGINE

1

5801362311

HOUSING

1шт.

2

504087515

SCREW

M8 x 1,25

1шт.

3

40102693

GASKET

1шт.

4

16588125

BOLT,M12 x 1.75 x 35mm

M12 x 35

4шт.

4

16593625

BOLT,M12 x 1.75 x 120mm

M12 x 120

2шт.

4

16675835

SCREW,M10 x 30mm

M10 x 30

1шт.

4

16600024

BOLT,M12 x 160mm

2шт.

4

16593425

BOLT,M12 x 100mm

M12 x 100

10шт.

4

16587125

SCREW,M10

M10 x 30

1шт.

4

2852925

SCREW,Hex, M12 x 1.75 x 130mm

M12 x 130

1шт.

5

504383029

FLANGE

1шт.

6

504382560

PLATE

1шт.

7

16673835

BOLT,Hex, M8 x 30mm

2шт.

8

10839810

DOWEL,12mm OD x 18mm L

2шт.

8

10839610

DOWEL,M8 x 12mm

1шт.

9

500322294

PLATE

1шт.

10

99448739

GASKET

1шт.

11

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

1шт.

12

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

13

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

5шт.

14

NSS

NOT SOLD SEPARAT

ASSY Contains Ref.15, 16, 17

1шт.

15

504068516

COVER

1шт.

16

99435566

SEAL

1шт.

17

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

M8 x 20

3шт.

18

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

19

16688925

BOLT,M6 x 10mm

2шт.

20

504382562

SHIELD

1шт.
