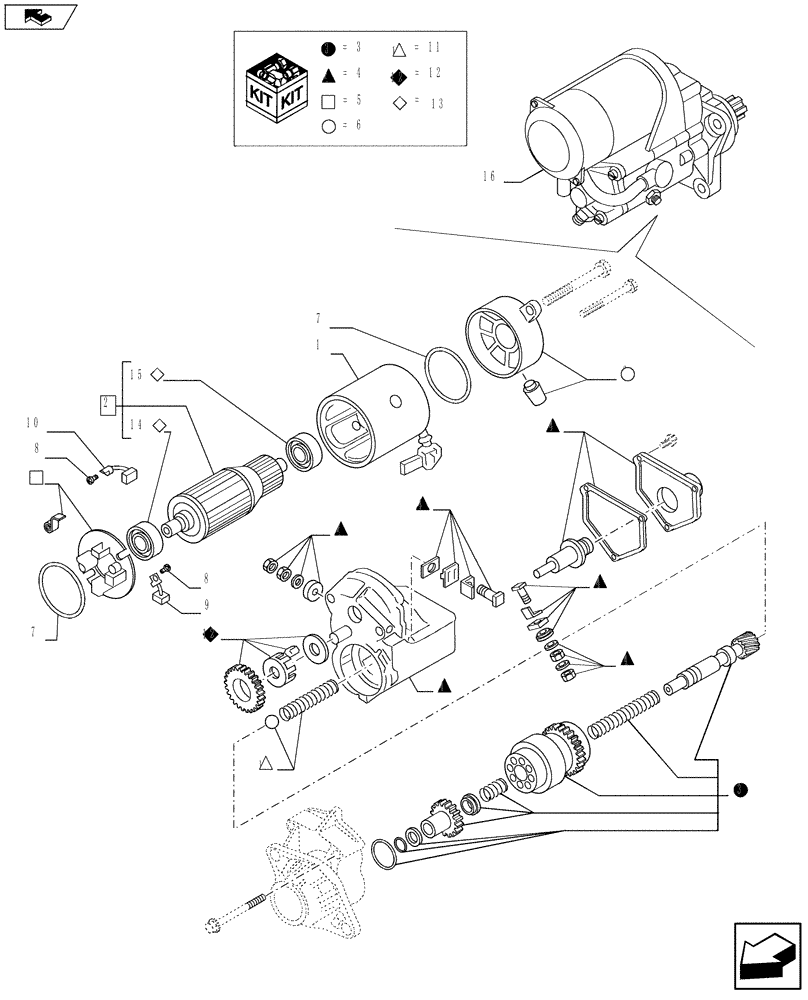

/ / / / / / / / (55.201.0101) - STARTER MOTOR - COMPONENTS (504106753)
Запчасти Case F3BE0684N E915 (55.201.0101) - STARTER MOTOR - COMPONENTS (504106753) (55) - ELECTRICAL SYSTEMS
7
3
5
11
13
12
9
5
6
4
4
13
8
16
11
15
4
13
3
12
2
12
3
7
4
home
6
4
4
13
1
14
4
8
10
4
6
5
11
1
42471438
STATOR
1шт.
2
42471439
ARMATURE
ASSY
1шт.
3
42471440
KIT, STARTER MTR REP
1шт.
4
42471441
KIT, STARTER MTR REP
1шт.
5
42471442
KIT, STARTER MTR REP
1шт.
6
42471443
HOUSING
1шт.
7
42471444
O-RING
2шт.
8
42471445
SCREW
M5
4шт.
9
42471446
BRUSH, COMMUTATOR
BRUSH
2шт.
10
42471447
BRUSH, COMMUTATOR
BRUSH
2шт.
11
42471378
KIT, STARTER MTR REP
1шт.
12
42471450
KIT, STARTER MTR REP
1шт.
13
42471451
KIT, STARTER MTR REP
1шт.
14
42546503
BEARING
1шт.
15
42546522
BEARING
1шт.
16
504106753
STARTER MOTOR
ASSY Contains Ref.1 - 15
1шт.
