/ / / / / / / / (55.201.AE[02]) - STARTER MOTOR - COMPONENTS

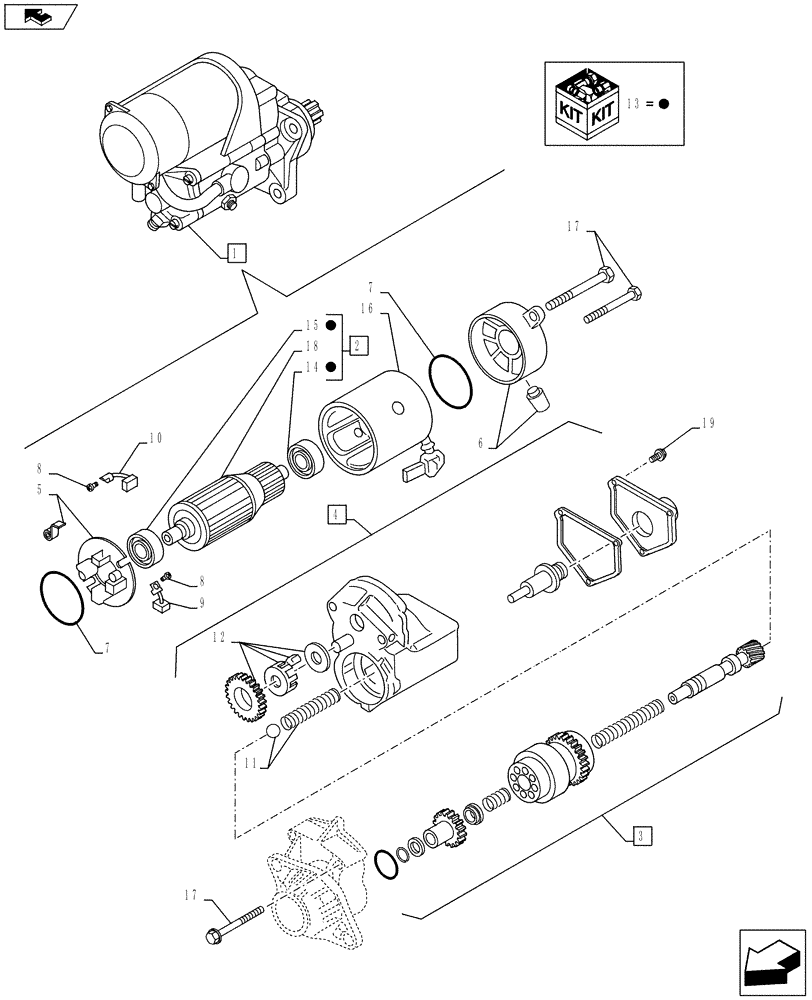

Запчасти Case F3BE0684J E919 (55.201.AE[02]) - STARTER MOTOR - COMPONENTS (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case F3BE0684J E919 - (55.201.AE[02]) - STARTER MOTOR - COMPONENTS (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/3697101.png)
7
9
13
home
3
15
13
4
6
13
5
13
1
11
18
19
17
14
2
10
17
16
8
7
12
8
1
99486046
STARTER MOTOR
ASSY
1шт.
1
99486046R
REMAN-STARTER
1шт.
1
99486046C
CORE-STARTER
Return Number
1шт.
2
42471439
ARMATURE
1шт.
3
42471440
KIT, STARTER MTR REP
1шт.
4
42471441
KIT, STARTER MTR REP
1шт.
5
42471442
KIT, STARTER MTR REP
1шт.
6
42471443
HOUSING
1шт.
7
42471444
O-RING
2шт.
8
42471445
SCREW
M5
4шт.
9
42471446
BRUSH, COMMUTATOR
2шт.
10
42471447
BRUSH, COMMUTATOR
2шт.
11
42471378
KIT, STARTER MTR REP
1шт.
12
42471450
KIT, STARTER MTR REP
1шт.
13
42546503
BEARING
Incl 14, 15
1шт.
14
42471541
BEARING
1шт.
15
42546522
BEARING
1шт.
16
42471438
STATOR
1шт.
17
NSS
NOT SOLD SEPARAT
Screw, Incl in 1
1шт.
18
NSS
NOT SOLD SEPARAT
Armature, Incl in 2
1шт.
19
NSS
NOT SOLD SEPARAT
Screw, Incl in 1
1шт.
