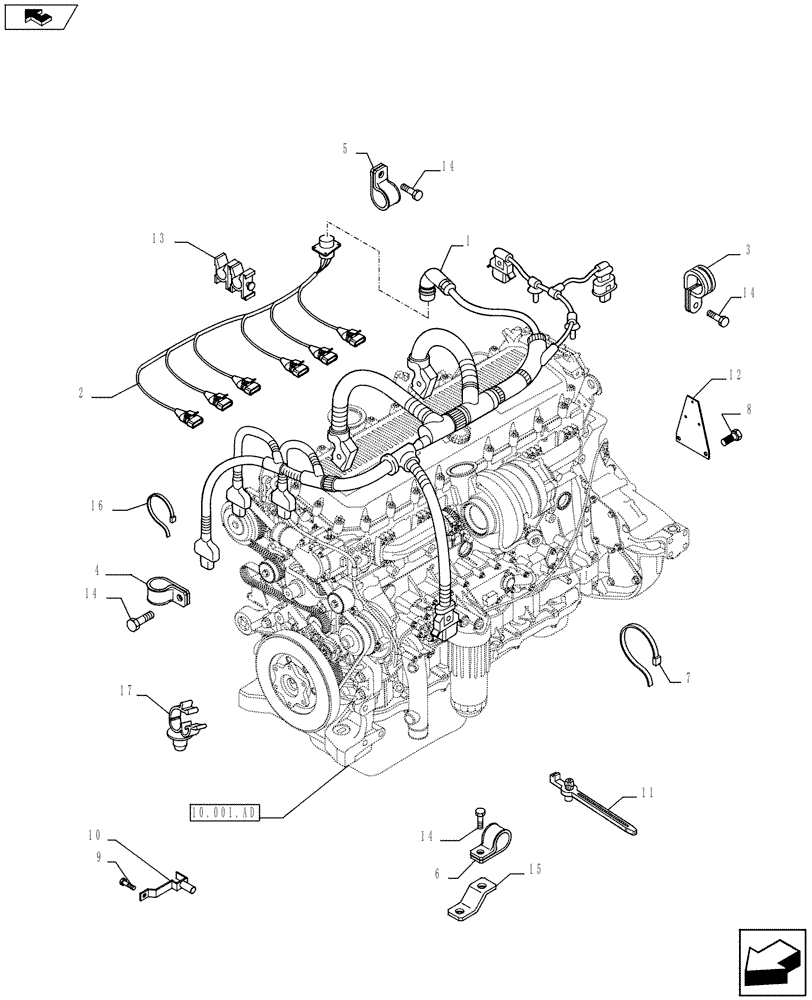

Запчасти Case F3BE0684J E919 (55.010.AA) - ENGINE - CABLE (55) - ELECTRICAL SYSTEMS

1

5801425301

WIRE HARNESS

Injector wire harness

1шт.

2

504149937

WIRE HARNESS

1шт.

3

17315490

CLAMP

Pipe Clip, D=22 mm

1шт.

4

17310001

CLAMP

Fastering Bracket, D=4 mm

1шт.

4

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

Pipe Clip, D=26 mm

1шт.

5

17310401

CLAMP

Fastering Bracket, D=8 mm

3шт.

6

17310501

CLAMP

Fastering Bracket, D=10 mm

1шт.

7

504023286

CLIP,200mm L

Cable Strap, 200 mm

4шт.

8

11612224

SCREW

M6 x 12 mm

5шт.

9

16673835

BOLT,Hex, M8 x 30mm

M8 x 30 mm

1шт.

10

504020897

BRACKET

Fastering Bracket

1шт.

11

99455033

CLAMP

D=188 mm

3шт.

12

504067009

BRACKET

Retainer

1шт.

13

504052515

RETAINER

Lock

1шт.

14

16689424

SCREW,M6 x 30mm

M6 x 30 mm

4шт.

14

16596925

BOLT,M6 x 12mm

M6 x 10 mm

2шт.

15

504049754

BRACKET

Retainer,2.5 mm

1шт.

16

42099097

CABLE TIE

D=380 mm

1шт.

17

504000063

COLLAR

D=26 mm

2шт.

17

504000061

COLLAR

D=15 mm

2шт.
