(10.304.AS[02]) - SUPPORT TUBE - ENGINE OIL DIPSTICK

Запчасти Case F3BE0684J E919 (10.304.AS[02]) - SUPPORT TUBE - ENGINE OIL DIPSTICK (10) - ENGINE

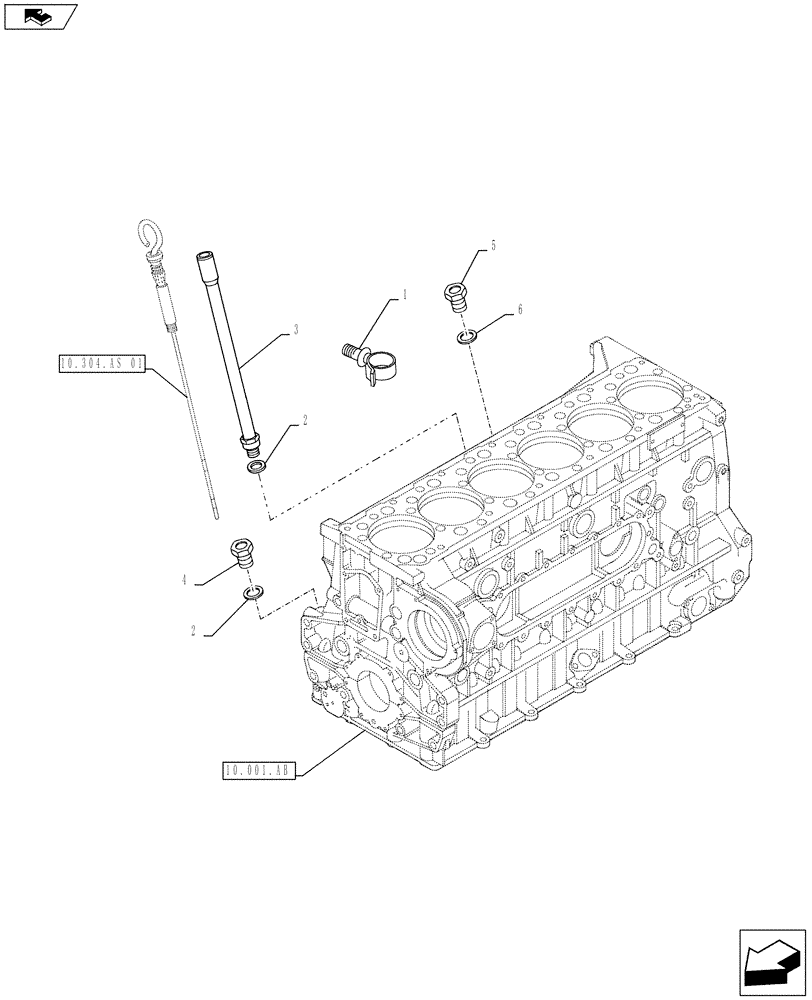

Схема запчастей Case F3BE0684J E919 - (10.304.AS[02]) - SUPPORT TUBE - ENGINE OIL DIPSTICK (10) - ENGINE
10.001.ab
2
1
6
3
5
4
home
2
10.304.as 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

500349848

CLAMP

Hitch ASSY

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

3

504117954

TUBE

Oil Level Tube

1шт.

4

16992515

PLUG

M18 x 1.5

1шт.

5

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

6

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

D=12 mm

2шт.
