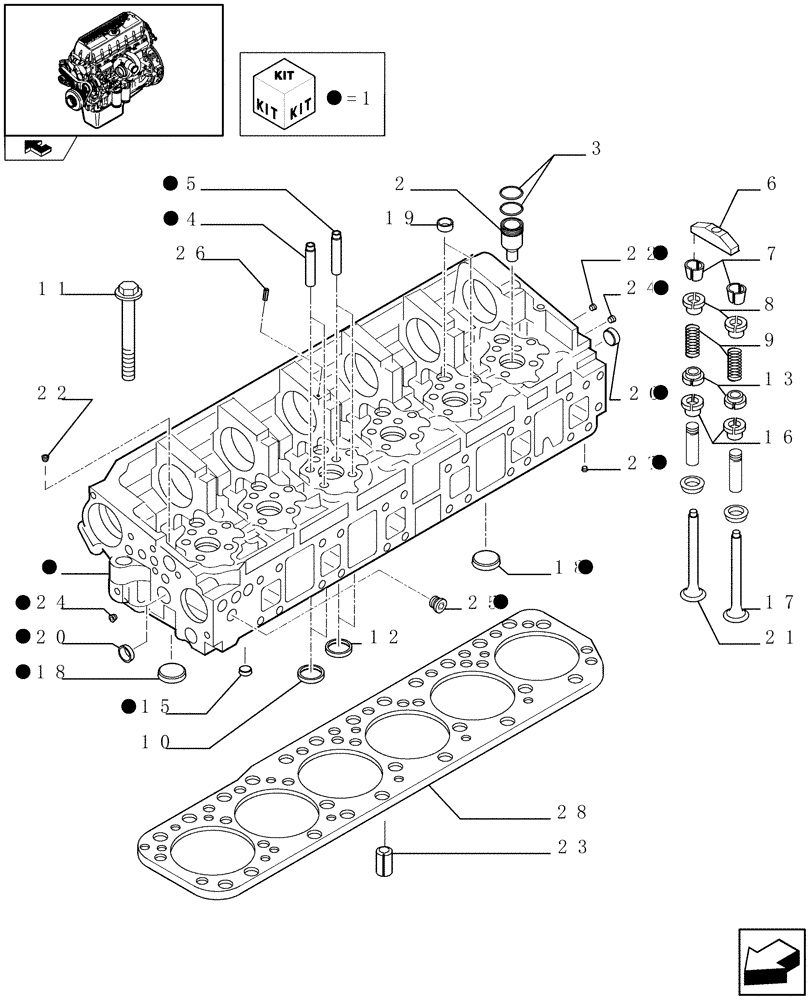

Запчасти Case F3BE0684J E902 (0.06.0) - CYLINDER HEAD & RELATED PARTS (504053191 - 504053193 - 504053195)

1

504021866

CYLINDER HEAD

- ASSY

1шт.

1

504021866R

REMAN-CYLINDER HEAD

F3BE0684J*E902 ENGINE - 504094592 - 84447410 Bare Head

1шт.

1

504021866C

CORE-CYLINDER HEAD

Return Number

1шт.

1

47507107R

REMAN-CYLINDER HEAD

Engine Model F3BE0684J*E902 with Engine P/N's 504094592 & 84447410, Complete Head For Bare Head P/N's 504021866 and 504021866R

1шт.

1

47507107C

CORE-CYLINDER HEAD

Return Number

1шт.

2

99476929

CASE

6шт.

3

14454081

O-RING,1.051" ID x 0.07" Width

D=26.7X1.7 mm

12шт.

4

500390993

INTAKE VALVE GUIDE

STD

12шт.

4

500390864

OVERSIZE INLET VALVE

+ 0,2

12шт.

4

500390866

OVERSIZE INLET VALVE

+ 0,4

12шт.

5

500390994

EXHAUST VALVE GUIDE

STD

12шт.

5

500390860

VALVE, EXHAUST, OVER

+0,2

12шт.

5

500390861

VALVE, EXHAUST, OVER

+0,4

12шт.

6

504002605

CROSSRAIL

12шт.

7

14196370

ROCKER ARM COTTER

D. 9,82 mm

48шт.

8

98473050

COTTERS PLATE

24шт.

9

504100000

SPRING

24шт.

10

99450511

VALVE SEAT

STD

12шт.

10

504020517

VALVE SEAT

+ 0,2

12шт.

11

504108192

SCREW,Flng, M18 x 2 x 196mm

20шт.

11

98495528

SCREW,Shldr, Hex Flg, M18 x 2 x 175mm

6шт.

12

99450512

VALVE SEAT

STD

12шт.

12

504020515

VALVE SEAT

+0,2

12шт.

13

504107641

CUP

24шт.

14

504078222

BUSHING

6шт.

15

504078223

BUSHING

1шт.

16

40101874

SEALING RING

12шт.

17

504080352

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

18

16991370

PLUG

D. 45 mm

2шт.

19

16990870

PLUG

D. 28 mm

13шт.

20

14282170

PLUG,M20, Tapered, Stainless

D. 20 mm

12шт.

21

500355778

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

22

504138062

PLUG

2шт.

23

2852985

DOWEL

D. 10 mm

2шт.

24

504051237

PLUG

D. 1/4 Inch

3шт.

25

504182706

PLUG

1шт.

26

17255674

ROLL PIN

D. 5 mm

1шт.

27

504138060

PLUG

1шт.

28

504007514

GASKET

1шт.
