(55.414.01) - MOTOR SENSORS (504138293)

Запчасти Case F3AE0684S E913 (55.414.01) - MOTOR SENSORS (504138293) (55) - ELECTRICAL SYSTEMS

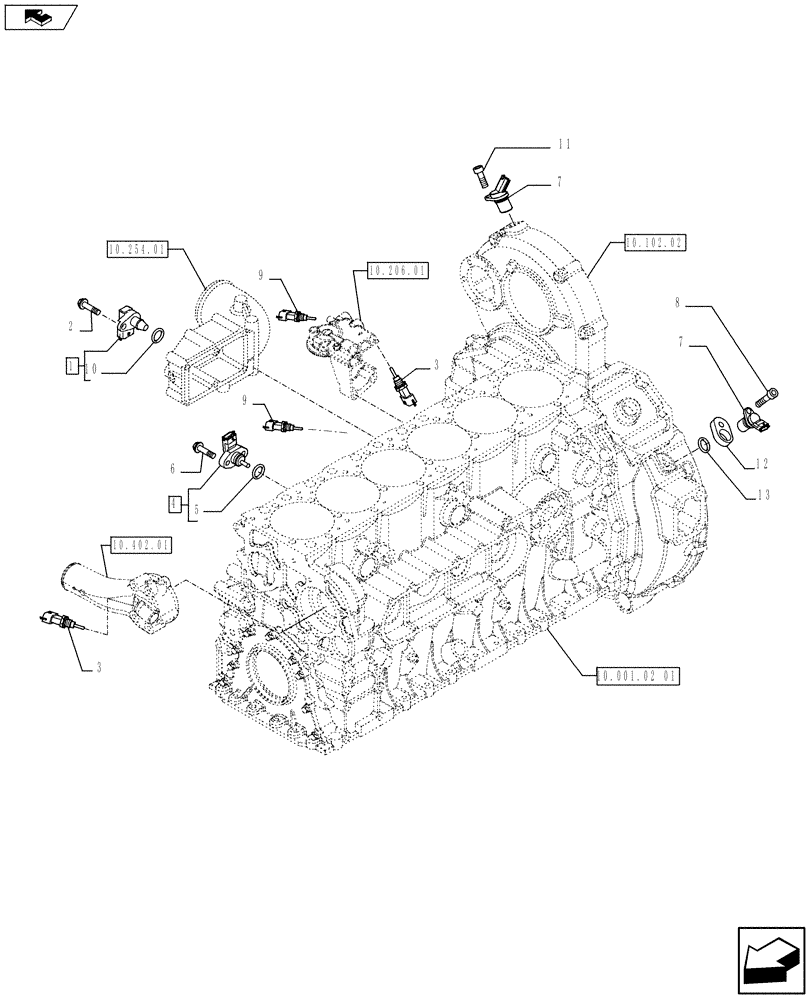

Схема запчастей Case F3AE0684S E913 - (55.414.01) - MOTOR SENSORS (504138293) (55) - ELECTRICAL SYSTEMS
10.001.02 01
8
3
7
11
5
10
7
9
12
home
4
1
3
2
6
9
13
10.254.01
10.102.02
10.206.01
10.402.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504073323

SENSOR

Air Pressure / Temperature, 4 wire

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

1шт.

3

82017881

SENSOR

Coolant Temperature

2шт.

4

504358206

ASSY Oil press. & tamperature

SWITCH,Pressure

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

7

504096645

TRANSMITTER

Camshaft & Crankshaft, 2 wire

2шт.

8

16689024

SCREW,M16 x 12mm

M6 x 12

2шт.

9

500346074

SENDER UNIT

2шт.

10

42546555

O-RING

1шт.

11

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

1шт.

12

504163664

SPACER

1шт.

13

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

1шт.
