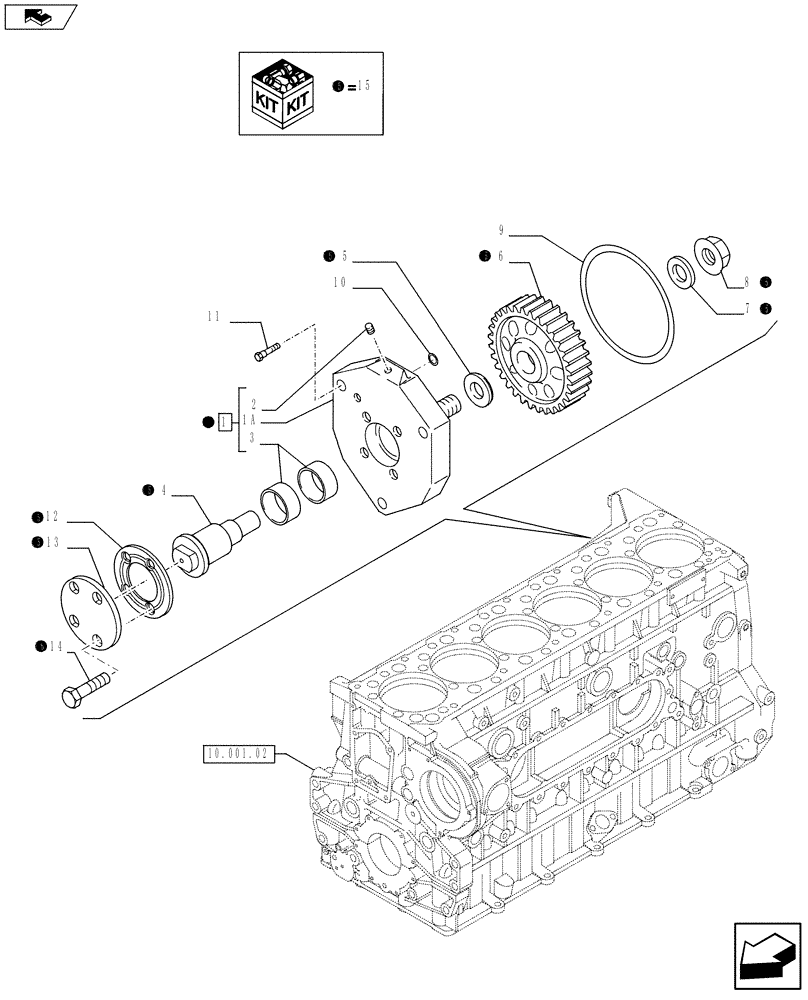

Запчасти Case F3AE0684S E913 (10.114.02) - BELT PULLEY DRIVE & COVER (500387625) (10) - ENGINE

1

500353779

SUPPORT

ASSY Contains Ref.1A, 2, 3

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

504051236

PLUG,Threaded, 1/8"

1шт.

3

4788087

BUSHING,36.57mm ID x 40.98mm OD x 17.2mm L

2шт.

4

504030275

PTO SHAFT

1шт.

5

500351319

LOCK WASHER

1шт.

6

500382573

GEAR

1шт.

7

500382574

LOCK WASHER

1шт.

8

17046231

NUT

M20

1шт.

9

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

D = 126.59 x 3.53 mm

1шт.

10

14456881

O-RING,0.362" ID x 0.103" Width

D = 9.19 mm

1шт.

11

16678135

SCREW,M12 x 45mm

M12 X 45

3шт.

12

500355018

GASKET

1шт.

13

500355019

COVER

1шт.

14

18139424

SCREW,Hex, M10 x 20mm

M10 X 20

4шт.

15

500382578

SUPPORT

1шт.
