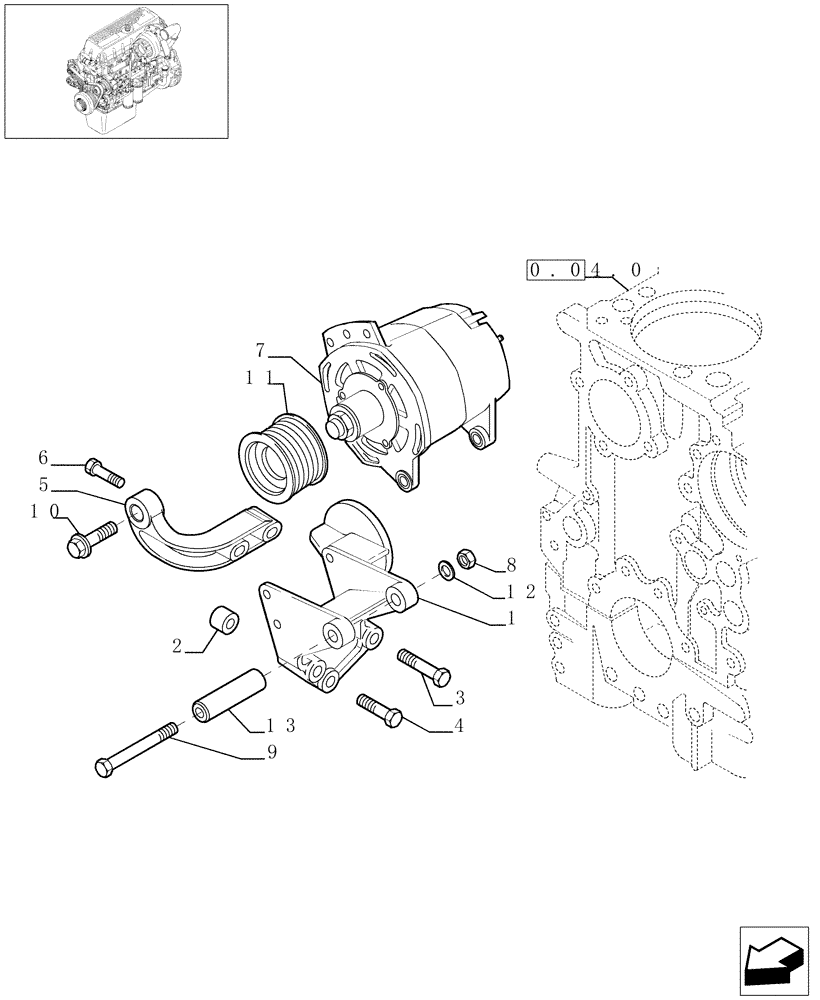

Запчасти Case F3AE0684G B003 (0.40.0[01]) - ALTERNATOR (500389442)

1

500389359

BODY

1шт.

2

98405462

DOWEL

2шт.

3

16587824

BOLT,Hex, M10 x 1.5 x 60mm

M10 x 1.5 x 60

2шт.

4

2852326

SCREW

M10 x 40

1шт.

5

504037646

SUPPORT

1шт.

6

2855301

SCREW,Hex, M8 x 1.25 x 50mm

M8X50 mm

2шт.

7

500399325

ALTERNATOR

1шт.

7

87409250

ALTERNATOR

Remanufactured Alternator, 24 Volt 40 ampere

1шт.

7

87592254

ALTERNATOR,12V, 185A

Remanufactured Alternator, 24 Volt 40 ampere

1шт.

7

87601413

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 185 ampere

1шт.

7

87601410

CORE-ALTERNATOR

Return Part Number

1шт.

8

17038421

NUT

M12

1шт.

9

16600024

BOLT,M12 x 160mm

M12 x 160

1шт.

10

500399332

SCREW

1шт.

11

500380058

PULLEY

1шт.

12

17095314

WASHER

D=12 x 24 mm

1шт.

13

504042883

SPACER

1шт.
