(0.17.1[01]) - MOTOR SENSORS (504014125)

Запчасти Case F3AE0684G B001 (0.17.1[01]) - MOTOR SENSORS (504014125)

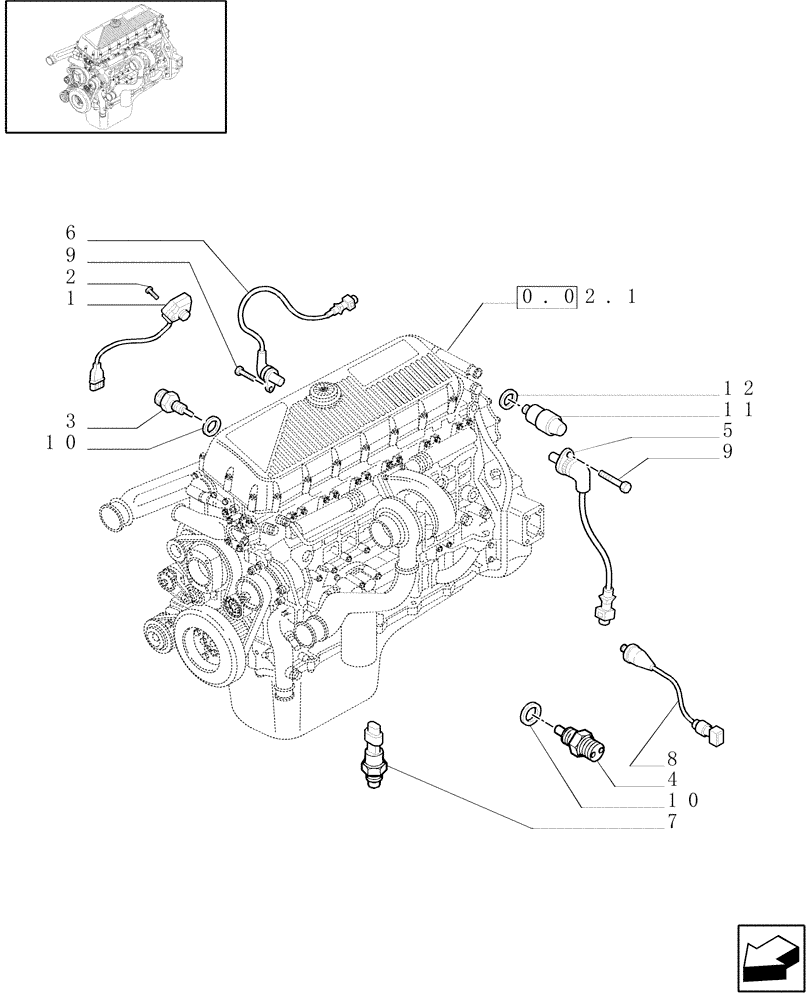

Схема запчастей Case F3AE0684G B001 - (0.17.1[01]) - MOTOR SENSORS (504014125)
9
9
5
12
3
4
6
10
11
10
1
8
7
0.02.1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

500360579

SENDER UNIT

Air Pressure Sensor with pig tail connector, Years: -31-DEC-03, Serial Range: -HAJ100800

1шт.

1

2852821

SENSOR

Air Temperature / Pressure without pig tail connector, Start Year: 01-JAN-04, Start Serial: HAJ100801

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

M6X18 MM

2шт.

3

98412656

TEMPERATURE SENDER

Air Temperature Sensor

1шт.

4

500306957

SENDER UNIT

Fuel Temperature

1шт.

5

82017874

SENSOR

Flywheel Position Sensor

1шт.

6

99450797

SENDER UNIT

Camshaft Position Sensor

1шт.

7

500386057

SENDER UNIT

Coolant Temperature

1шт.

8

500377533

SENDER UNIT

Oil Pressure

1шт.

9

2854278

M6X10 MM

2шт.

10

99489019

SEALING WASHER

DIA. 16X24 MM THK. 1,5

3шт.

11

500346371

SENSOR

Plugged Fuel Filter Switch

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

DIA. 12 MM

1шт.
