(0.17.1[01]) - ELECTRONIC INJECTION (504058915 - 504071663)

Запчасти Case F3AE0684D B005 (0.17.1[01]) - ELECTRONIC INJECTION (504058915 - 504071663)

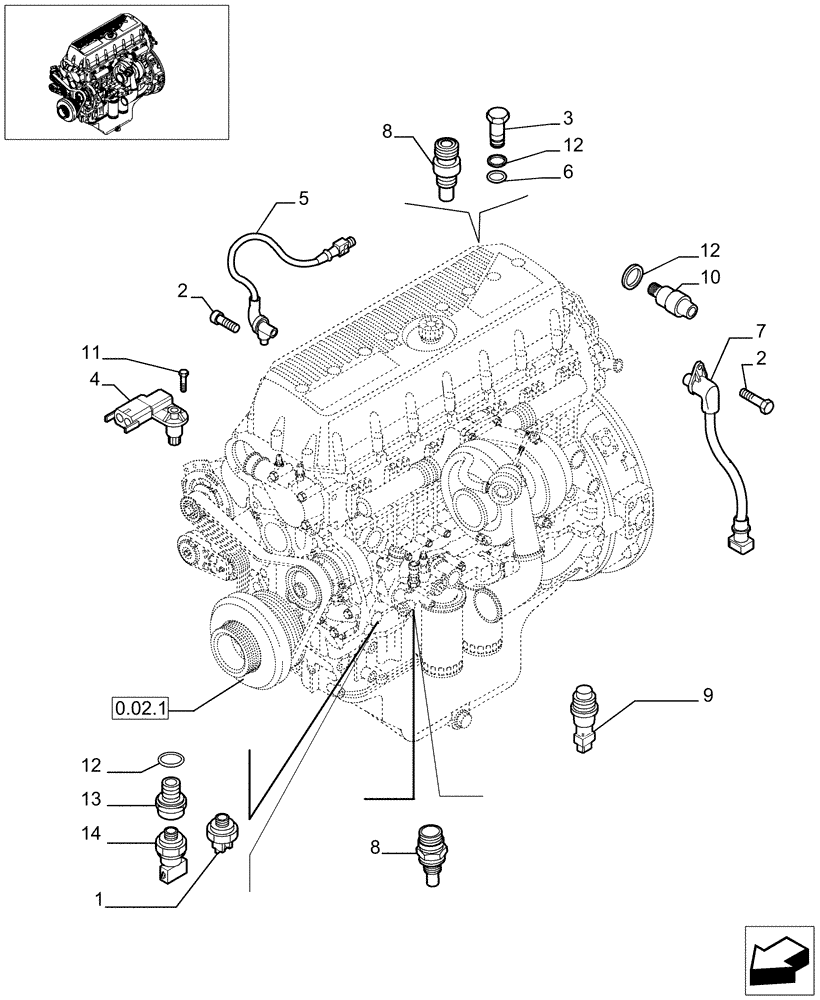

Схема запчастей Case F3AE0684D B005 - (0.17.1[01]) - ELECTRONIC INJECTION (504058915 - 504071663)
10
6
12
3
2
4
1
8
8
0.02.1
11
5
9
2
7
12
12
14
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2852141

SENDER UNIT

Oil Temperature (BORLETTI)

1шт.

1

2852142

SENDER UNIT

Oil Temperature (SIPEA)

1шт.

2

16689024

SCREW,M16 x 12mm

M6 x 12

2шт.

3

504084571

PLUG

1шт.

4

2852821

SENSOR

Air Temperature / Pressure, 4 wire

1шт.

5

99450797

SENDER UNIT

Camshaft Position Sensor

1шт.

6

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

M7.65 x 1.78

1шт.

7

82017874

SENSOR

Flywheel Position Sensor

1шт.

8

82017881

SENSOR

Coolant Temperature

3шт.

9

500386057

SENDER UNIT

Coolant Temperature Switch

1шт.

10

500346371

SENSOR

M8X45 mM

1шт.

11

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=12mm

1шт.

13

500356858

ADAPTER

M14

1шт.

14

500377533

SENDER UNIT

Oil Pressure

1шт.
