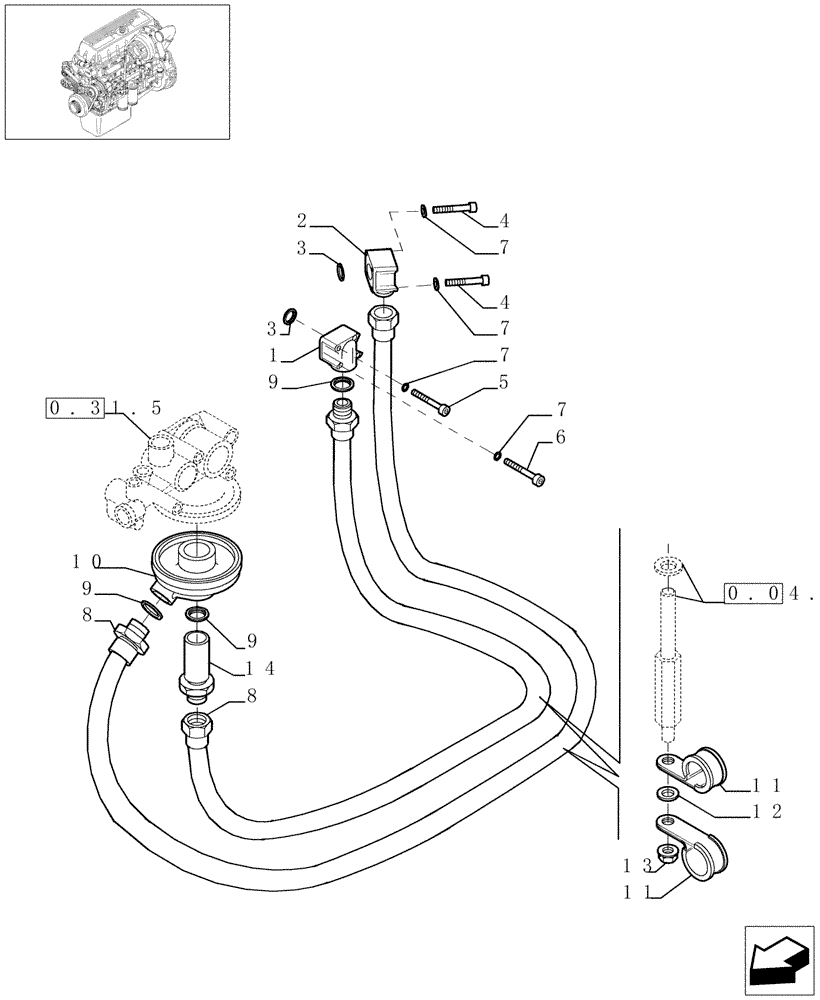

Запчасти Case F3AE0684D B001 (0.30.26[01]) - AIR DELIVERY PIPES (504032686)

1

504005572

ELBOW

1шт.

2

98481998

FITTING

1шт.

3

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

2шт.

4

16689724

SCREW,M6 x 45mm

2шт.

5

16689824

SCREW,M6 x 50mm

2шт.

6

16689924

SCREW

4шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

8

504002665

HOSE

2шт.

9

99434480

SEAL

3шт.

10

504005569

SUPPORT

1шт.

11

17317390

CLAMP

8шт.

12

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

5шт.

13

17044721

NUT

M8x1.25

5шт.

14

500382730

FITTING

1шт.
