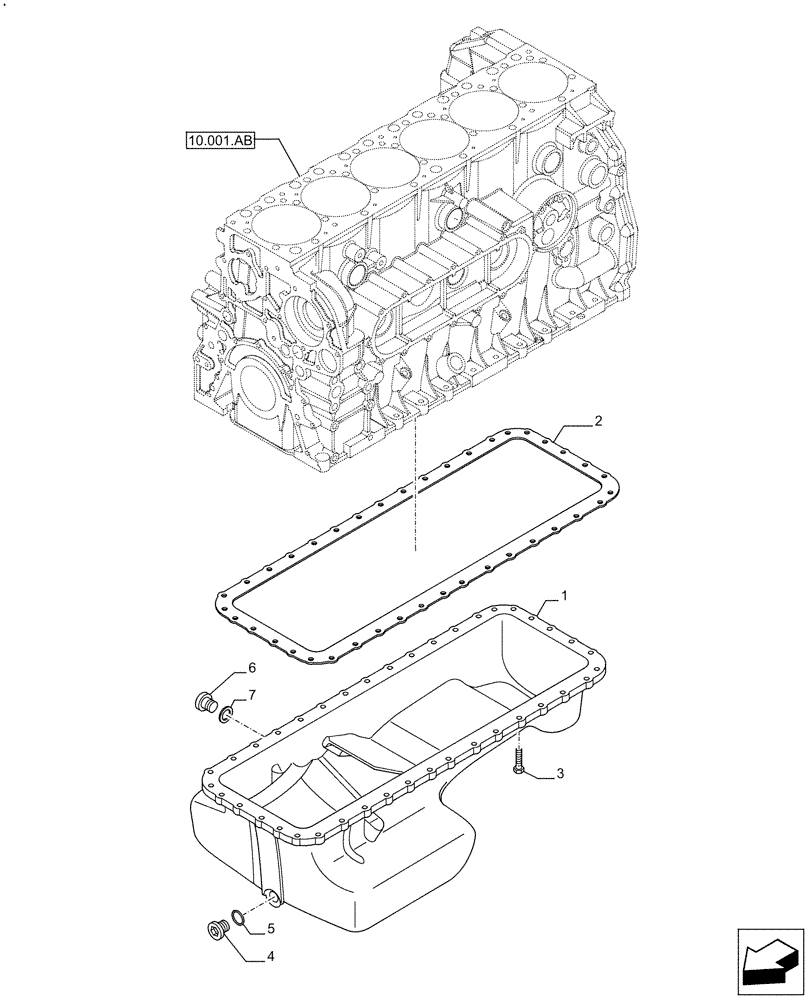

Запчасти Case F2CFE614F B005 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

504374980

SUMP

1шт.

2

504384281

GASKET

1шт.

3

16587525

BOLT,M10 x 45mm

26шт.

3

16587325

SCREW,Hex, M10 x 35mm

12шт.

4

504152596

DRAIN PLUG

M22 x 1,5mm

1шт.

5

17282281

O-RING,23.40mm ID x 2.60mm

1шт.

6

5801383773

PLUG

1шт.

7

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

D=12mm

1шт.
