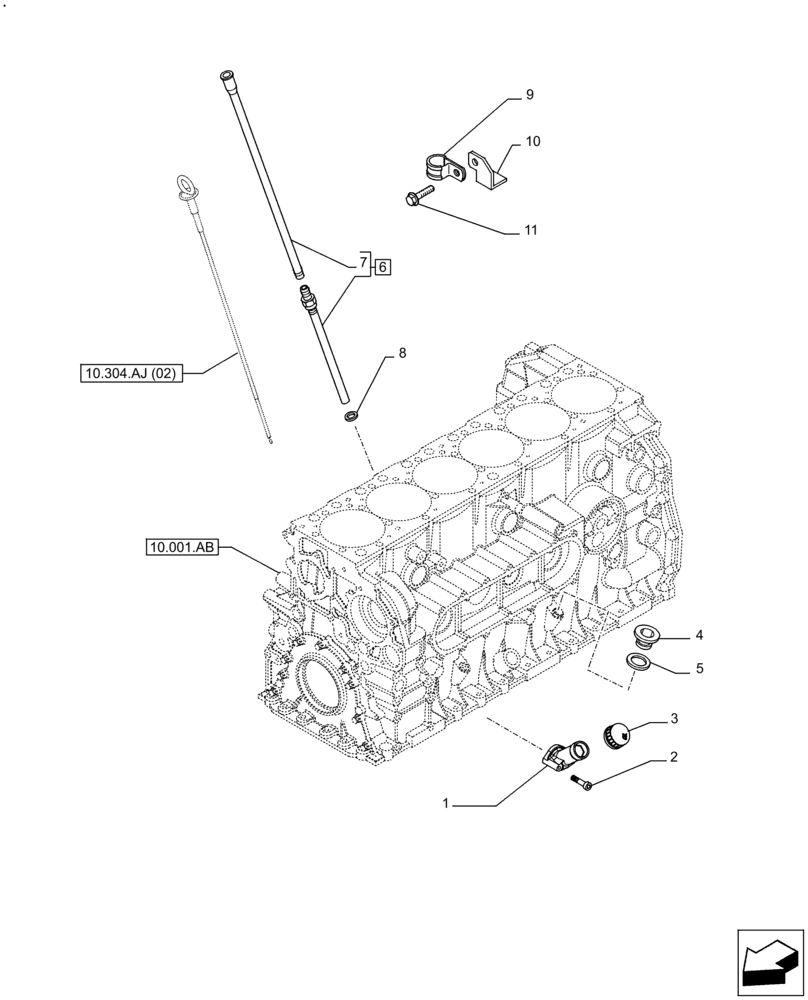

Запчасти Case F2CFE614F B004 (10.304.AJ[01]) - ENGINE OIL, DIPSTICK (10) - ENGINE

1

5801425422

NECK FILLER

1шт.

2

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

M8 x 1.25 x 20 mm

2шт.

3

2852136

CAP,48mm ID x 56mm OD x 18mm W

1шт.

4

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

M12 x 1,5 mm

1шт.

5

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

D=12 mm

1шт.

6

5801426014

TUBE

Assy; Incl 7

1шт.

7

NSS

NOT SOLD SEPARAT

Oil Level Tube; Incl in 6

1шт.

8

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

D=18 mm

1шт.

9

17316699

CLAMP

D=14 mm

1шт.

10

4791406

BRACKET

1шт.

11

16586225

BOLT,M8 x 16mm

M8 x 1.25 x 16 mm

1шт.
