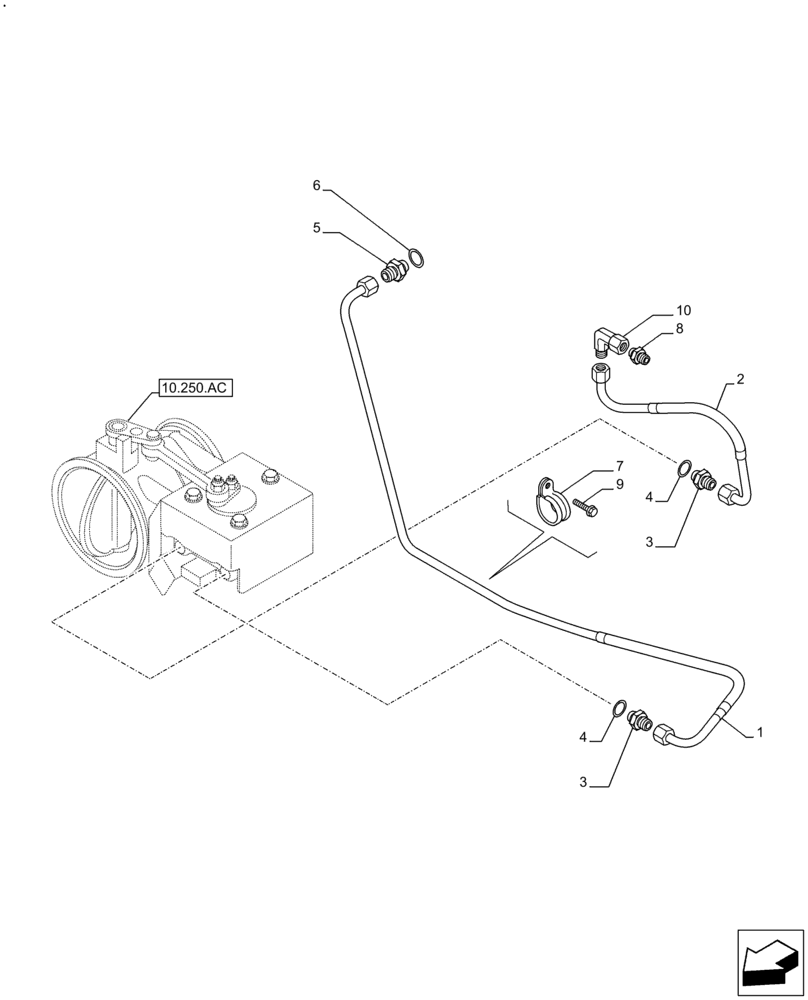

Запчасти Case F2CFE614B B006 (10.250.AJ) - AIR-WATER HEAT EXCHANCER (10) - ENGINE

1

5801643407

PIPE

WATER PIPE

1шт.

2

5801622528

TUBE

WATER PIPE

1шт.

3

16500114

UNION

2шт.

4

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

D=12 mm

2шт.

5

16500919

UNION

1шт.

6

5801560870

WASHER

SEAL GASKET

1шт.

7

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

2шт.

8

41034989

UNION

1шт.

9

16600224

SCREW,Hex, M8 x 1.25 x 18mm

M8x1.25x18 mm

2шт.

10

16503914

ELBOW UNION

1шт.
