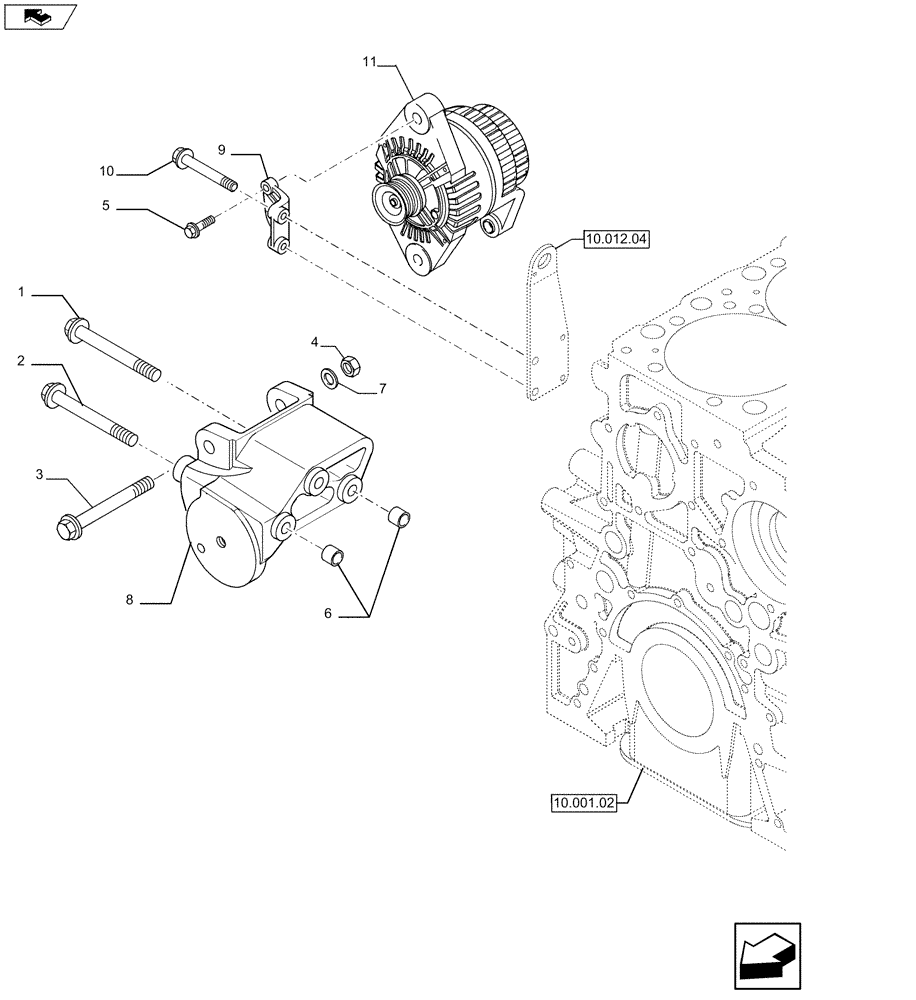

Запчасти Case F2CFE614B A002 (55.301.02) - ALTERNATOR (5801425451) (Dec 2 2011 10:31:00.5718 AM) (55) - ELECTRICAL SYSTEMS

1

16599025

SCREW,Hex, M10 x 120mm, Cl 8.8

M10 x 1.5X40

1шт.

2

16599225

SCREW,M10 x 140mm

M10 x 70

1шт.

3

16600024

BOLT,M12 x 160mm

M12 x 160

1шт.

4

337475

NUT,M12, Cl 10

M12

1шт.

5

16693324

BOLT,Flng, M10 x 100mm

M10 x 20

1шт.

6

98405462

DOWEL

D = 10.2

2шт.

7

17095314

WASHER

1шт.

8

5801425455

BRACKET

1шт.

9

5801425458

BRACKET

1шт.

10

16593425

BOLT,M12 x 100mm

2шт.

11

5801425459

1шт.
