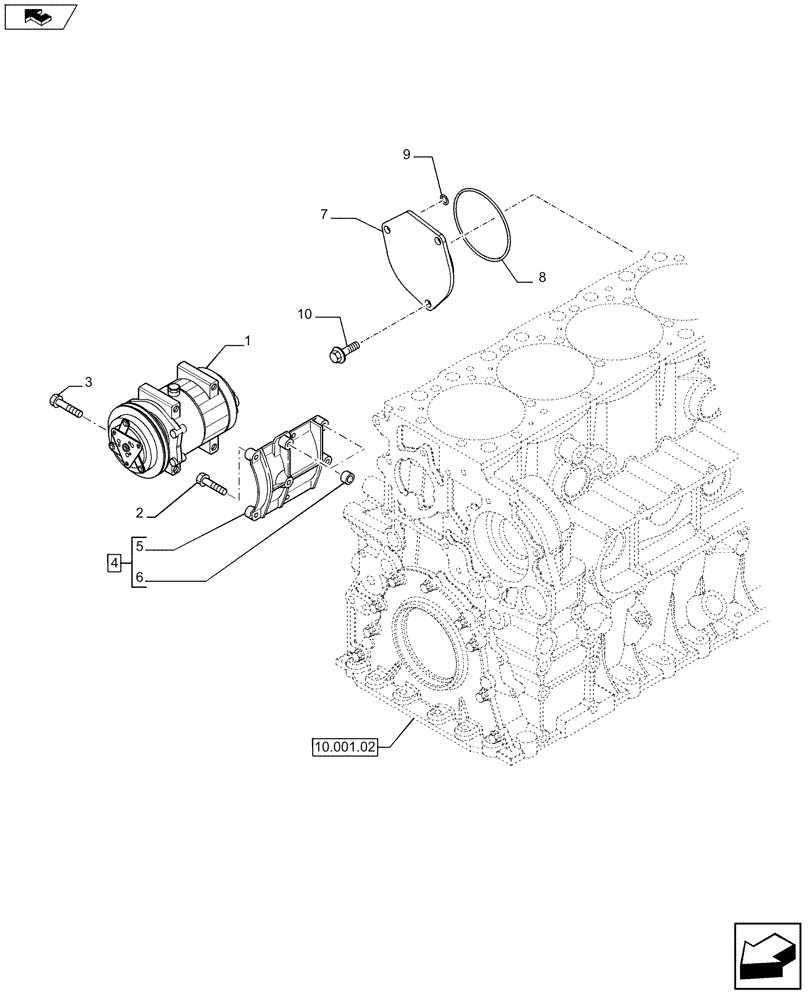

Запчасти Case F2CFE614B A002 (50.200.01) - COMPRESSOR, AIRCOND. (504373626 - 504150293) (Dec 2 2011 10:31:00.5715 AM) (50) - CAB CLIMATE CONTROL

1

86993463

AIRCOND. COMPRESSOR

1шт.

2

16598225

BOLT,Flng, M8 x 90mm

4шт.

3

2852172

BOLT,Flng, M10 x 1.5 x 70mm

2шт.

4

504354695

BRACKET

ASSY

1шт.

5

504354470

SUPPORT

1шт.

6

504277279

PIN

2шт.

7

504150292

COVER

1шт.

8

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

1шт.

9

14456881

O-RING,0.362" ID x 0.103" Width

1шт.

10

16677735

SCREW,M12 x 25mm

3шт.
