(10.304.01 01) - PUMP, ENGINE OIL & RELATED PARTS (504133121) (Jul 6 2011 5:49:00.5704 AM)

Запчасти Case F2CFE614B A002 (10.304.01 01) - PUMP, ENGINE OIL & RELATED PARTS (504133121) (Jul 6 2011 5:49:00.5704 AM) (10) - ENGINE

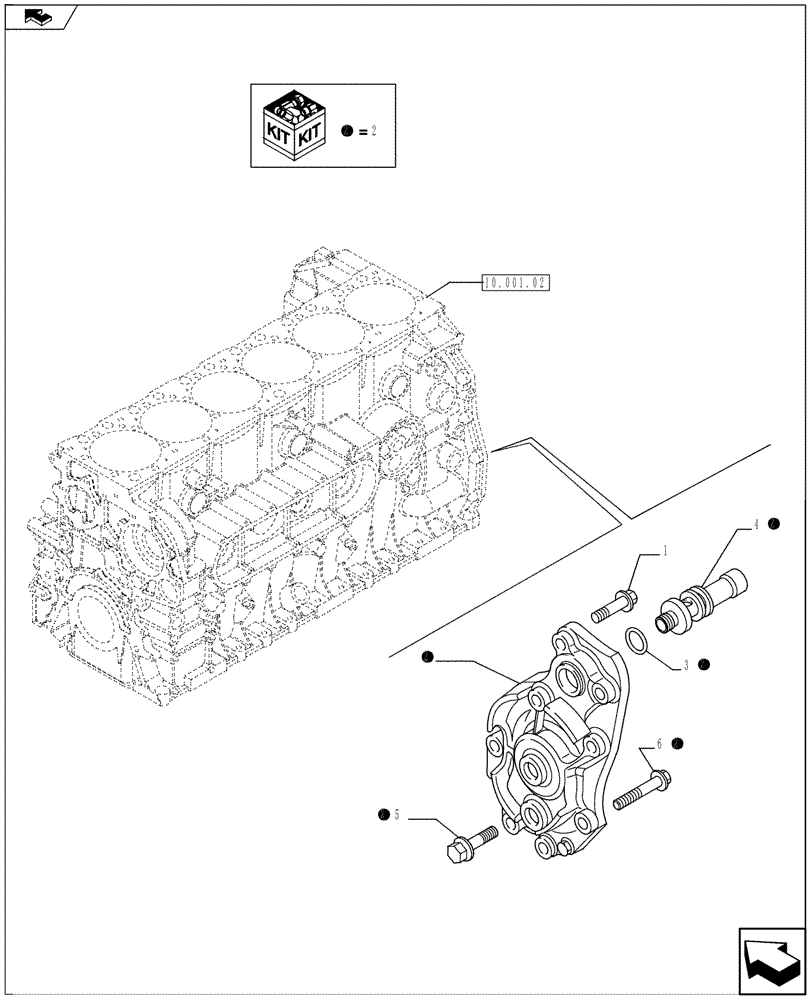

Схема запчастей Case F2CFE614B A002 - (10.304.01 01) - PUMP, ENGINE OIL & RELATED PARTS (504133121) (Jul 6 2011 5:49:00.5704 AM) (10) - ENGINE
2
5
2
2
1
4
2
2
2
10.001.02
2
6
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

500355363

SCREW

M8 x 1.25 x 60

5шт.

1

504010370

BOLT

M8 x 1.25 x 45

3шт.

2

504131225

ENGINE OIL PUMP

ASSY

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

D = 21.8 x 2.6 mm

1шт.

4

500304389

SAFETY VALVE

1шт.

5

18137825

BOLT,Hex, M6 x 16mm

M6 x 16 mm

1шт.

6

16591725

SCREW,Hex, M6 x 40mm

1шт.
