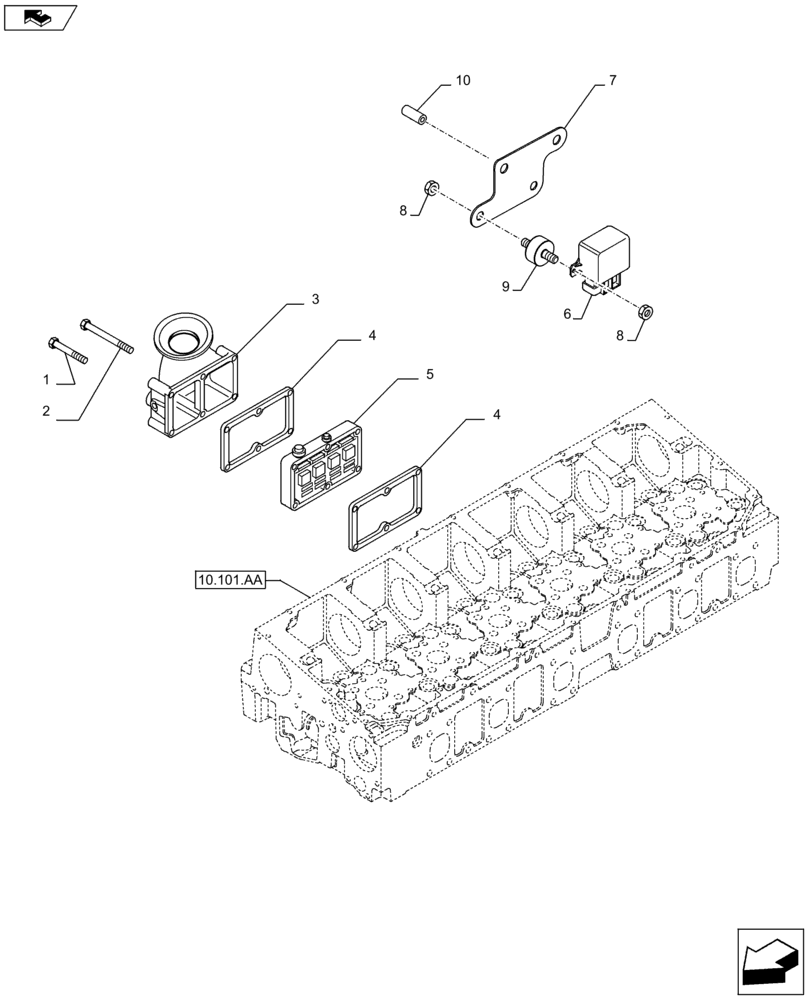

Запчасти Case F2CFE614A B001 (10.254.AM) - INLET MANIFOLD (10) - ENGINE

1

16593125

BOLT,M10 x 100mm

M10 x 100 mm

3шт.

2

16599325

SCREW,M10 x 150mm

M10 x 150 mm

1шт.

2

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10 x 130 mm

1шт.

3

504074687

MANIFOLD

1шт.

4

504375264

GASKET,0.3mm Thk

2шт.

5

504154987

HEATER

1шт.

6

86619908

RELAY,12V, 150A

1шт.

7

5801636810

RETAINER

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

M6 x 1

4шт.

9

504090550

LUG

2шт.

10

5801484382

SPACER

2шт.
